(90.108.AC[03]) - DECALS, SAFETY

Запчасти Case IH PATRIOT 2250 (90.108.AC[03]) - DECALS, SAFETY (90) - PLATFORM, CAB, BODYWORK AND DECALS

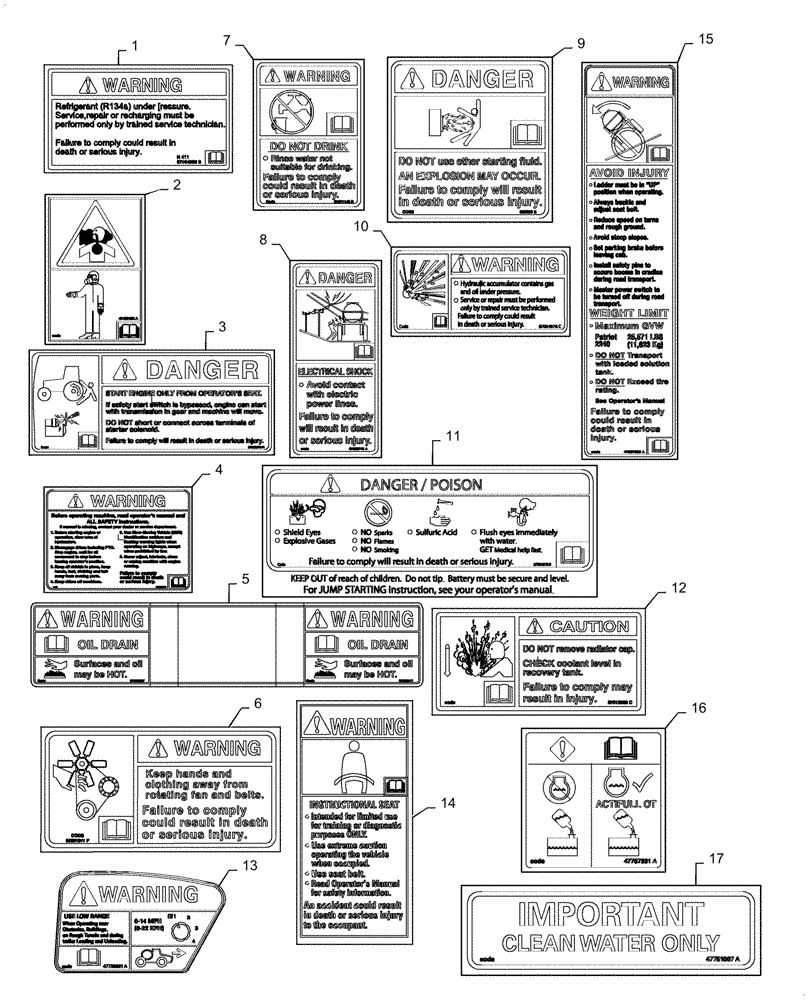

Схема запчастей Case IH PATRIOT 2250 - (90.108.AC[03]) - DECALS, SAFETY (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
8
16
13
2
6
15
3
5
7
1
4
14
17
11
10
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87054969

WARNING DECAL

Refrigerant

1шт.

2

47433182

DECAL

Warning, Chemical Hazard

2шт.

3

87033529

DECAL

Danger, Starter

1шт.

4

86622073

WARNING DECAL

Operator

1шт.

5

87266217

DECAL

Oil Drain

1шт.

6

86501511

WARNING DECAL

Fan

2шт.

7

87271146

DECAL

Do Not Drink

1шт.

8

87535740

DECAL

Electric Shock

1шт.

9

629086

DANGER DECAL

Starting Fluid

1шт.

10

87054976

WARNING DECAL

Accumulator

2шт.

11

87054970

DECAL

Danger, Battery

1шт.

12

87013363

DECAL

Radiator Cap

1шт.

13

47720061

DECAL

Safe Speed

1шт.

14

410704A1

WARNING DECAL

Instructional Seat

1шт.

15

47751114

DECAL

Weight Limit

1шт.

16

47757331

DECAL

Oat Coolant - Actifull OT - 75 x 75

2шт.

17

47751007

DECAL

Clean Water Only, English

1шт.
