(29.100.AC[07]) - HYDROSTATIC PUMP, PORT PLATE WITH VALVES

Запчасти Case IH PATRIOT 3240 (29.100.AC[07]) - HYDROSTATIC PUMP, PORT PLATE WITH VALVES (29) - HYDROSTATIC DRIVE

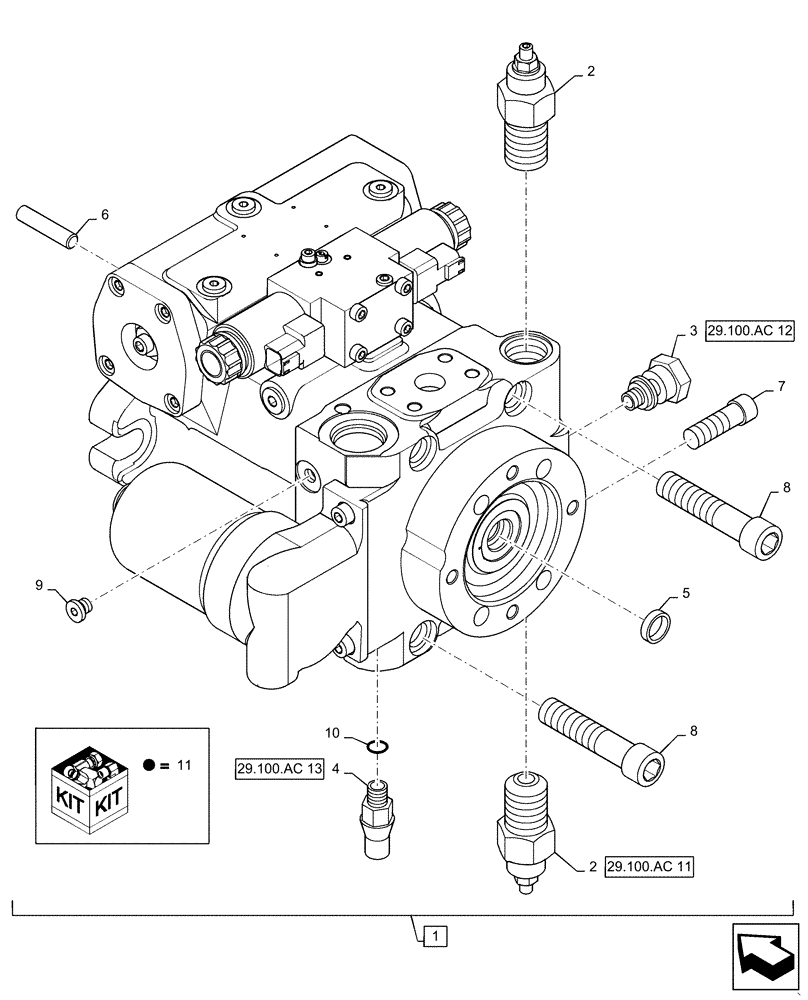

Схема запчастей Case IH PATRIOT 3240 - (29.100.AC[07]) - HYDROSTATIC PUMP, PORT PLATE WITH VALVES (29) - HYDROSTATIC DRIVE
11
10
29.100.ac 12
4
11
29.100.ac 11
2
3
2
29.100.ac 13
5
8
1
8
9
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84578941

PLATE

Port, With Valves, Incl 2 - 10

1шт.

2

87601546

VALVE PRESSURE RELIE

Port Plate, 450 Bar

2шт.

See Fig 29.100.AC 11 For Service

1шт.

3

87601547

VALVE

Relief, Charge Pump, 29 Bar

1шт.

See Fig 29.100.AC12 For Service

1шт.

4

87601549

HYDRAULIC VALVE

Pressure Override

1шт.

See Fig 29.100.AC 13 For Service

1шт.

5

87758213

BUSHING

Pump Shaft

1шт.

6

87650369

PIN

M6 x 12

2шт.

7

87758207

BOLT

M8 x 1

1шт.

8

87758201

BOLT

M14 x 70

4шт.

9

87516835

PLUG

7/16 - 20, Plug

2шт.

10

87477180

O-RING

Port Plate Seal, 0.103" x 5.487"

1шт.

11

87603572

SEAL KIT

Port Plate

1шт.
