(29.204.AH[01]) - HYDROSTATIC PUMP FILTER ASSY

Запчасти Case IH PATRIOT 3240 (29.204.AH[01]) - HYDROSTATIC PUMP FILTER ASSY (29) - HYDROSTATIC DRIVE

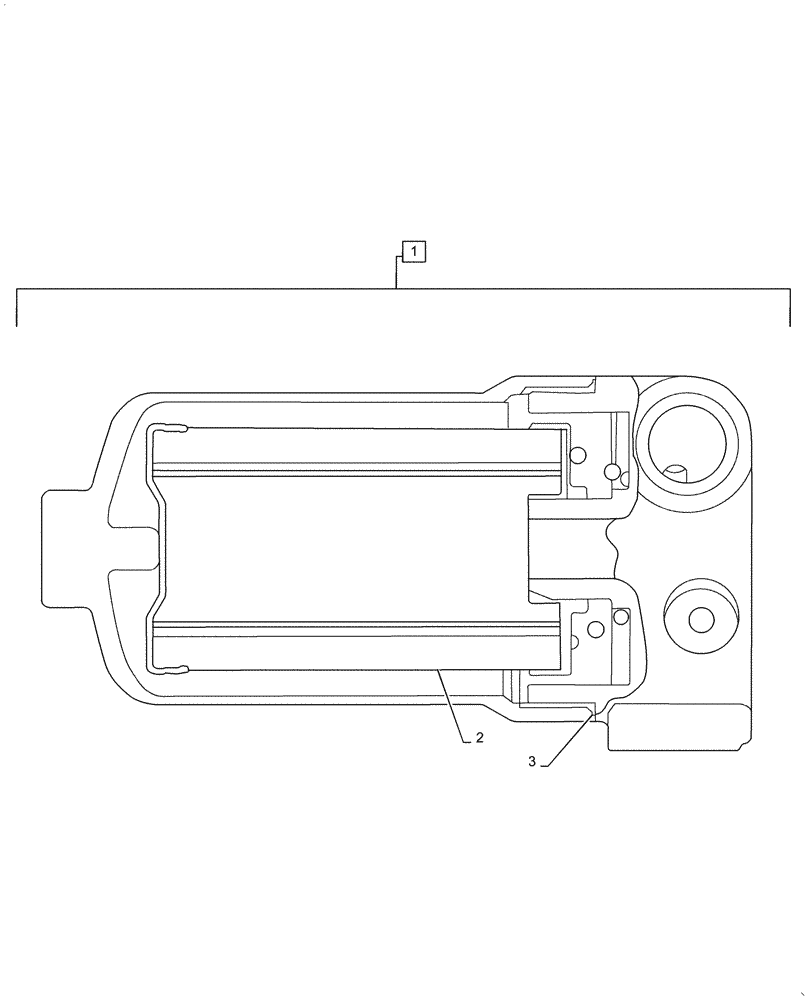

Схема запчастей Case IH PATRIOT 3240 - (29.204.AH[01]) - HYDROSTATIC PUMP FILTER ASSY (29) - HYDROSTATIC DRIVE
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84554579

HYDRAULIC OIL FILTER

Charge Pump, Complete, Incl 2 - 3

1шт.

2

87601556

FILTER

Cartridge, 10 Micron

1шт.

3

84288754

O-RING

Filter, Charge Pump

1шт.

4

122057

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Between Pump And Filter Head, Not Shown

2шт.
