(55.404.CL[04]) - CAB, REAR LIGHTS, JUMPER HARNESS

Запчасти Case IH PATRIOT 3340 (55.404.CL[04]) - CAB, REAR LIGHTS, JUMPER HARNESS (55) - ELECTRICAL SYSTEMS

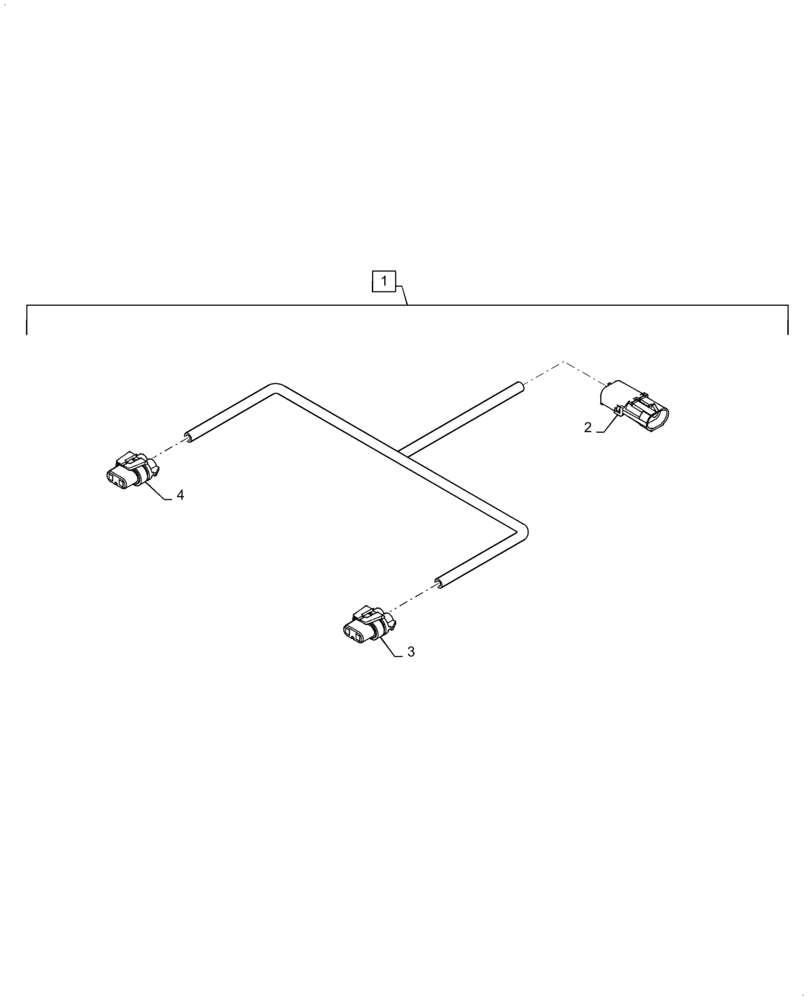

Схема запчастей Case IH PATRIOT 3340 - (55.404.CL[04]) - CAB, REAR LIGHTS, JUMPER HARNESS (55) - ELECTRICAL SYSTEMS
4
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87756562

WIRE HARNESS

Work Light Extension, Incl 2 - 4

1шт.

2

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

J001

1шт.

3

294250A1

CONNECTOR, ELEC

Female, 2 Cavity, P002

1шт.

3

87686740

RETAINER

Secondary Lock, Blue, P002

1шт.

4

294250A1

CONNECTOR, ELEC

Female, 2 Cavity, P003

1шт.

4

87686740

RETAINER

Secondary Lock, Blue, P003

1шт.
