(55.515.AI[02]) - 120 AUTOBOOM SENSOR MOUNTING PARTS

Запчасти Case IH PATRIOT 3340 (55.515.AI[02]) - 120 AUTOBOOM SENSOR MOUNTING PARTS (55) - ELECTRICAL SYSTEMS

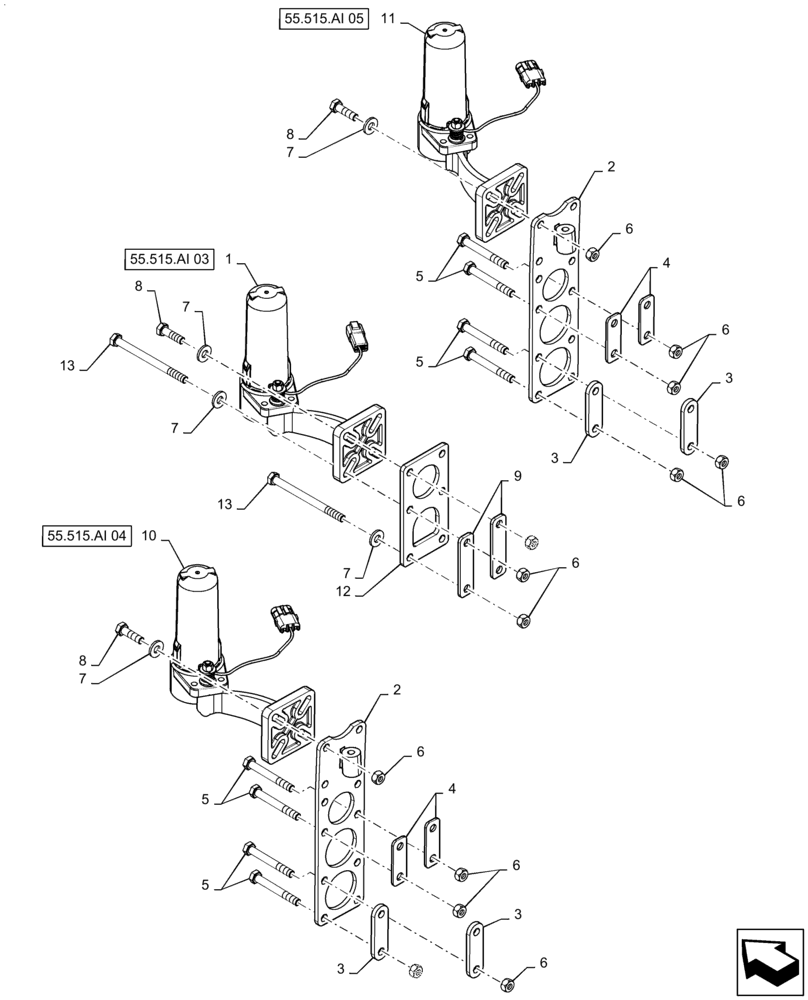

Схема запчастей Case IH PATRIOT 3340 - (55.515.AI[02]) - 120 AUTOBOOM SENSOR MOUNTING PARTS (55) - ELECTRICAL SYSTEMS
13
4
9
55.515.ai 04
7
8
6
3
7
55.515.ai 03
1
11
6
6
7
6
13
5
8
8
3
55.515.ai 05
10
5
5
2
5
7
12
4
3
2
7
3
6
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84247475

SENSOR

Center Ultrasonic

1шт.

See 55.515.AI 03 For Service Parts

1шт.

2

47593329

MOUNT

Tall Sensor

2шт.

3

BN308039

PLATE

Spacer

4шт.

4

87628243

PLATE

Backer, 1-1/2" Tube, Sensor Mount

4шт.

5

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

16шт.

6

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

16шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

8

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

10шт.

9

87620862

PLATE

2-1/2" Backer

2шт.

10

87710686

SENSOR

LH Boom Ultrasonic

1шт.

See 55.515.AI 04 For Service Parts

1шт.

11

87710685

SENSOR

RH Boom Ultrasonic

1шт.

See 55.515.AI 05 For Service Parts

1шт.

12

84256576

BRACKET

Sensor Mount

1шт.

13

86980413

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

4шт.
