(55.785.AS[02]) - MONITOR READY CODI JUMPER HARNESS

Запчасти Case IH PATRIOT 3340 (55.785.AS[02]) - MONITOR READY CODI JUMPER HARNESS (55) - ELECTRICAL SYSTEMS

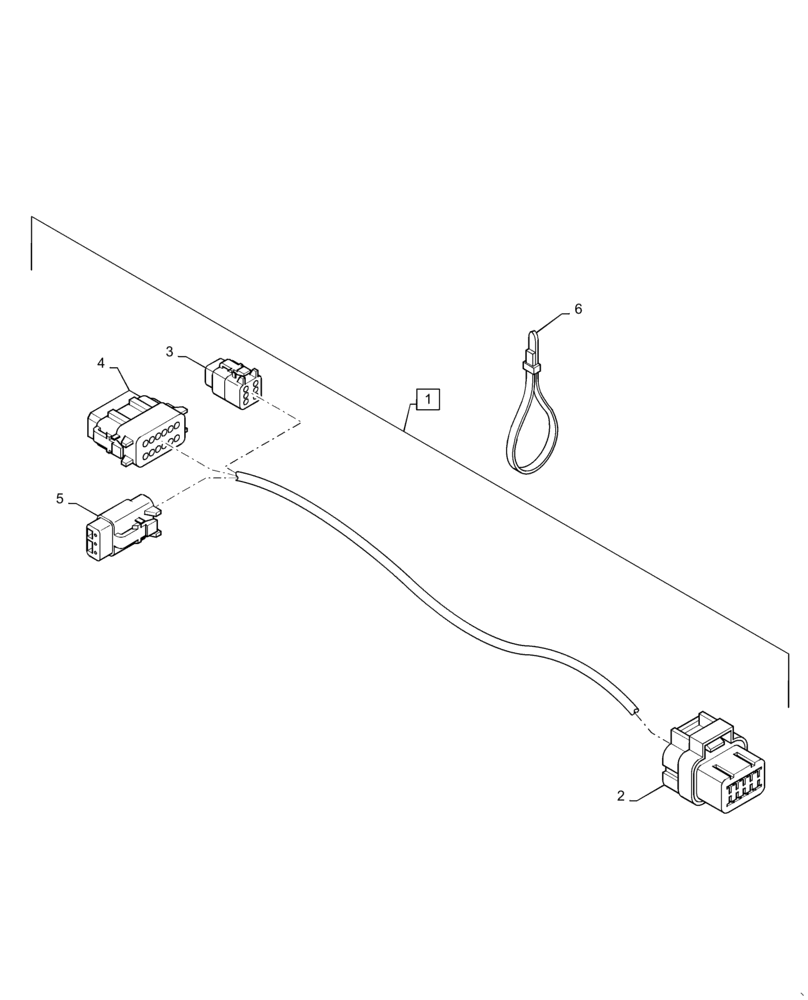

Схема запчастей Case IH PATRIOT 3340 - (55.785.AS[02]) - MONITOR READY CODI JUMPER HARNESS (55) - ELECTRICAL SYSTEMS
2
4
1
5
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87608504

HARNESS

CODI Jumper Incl 2 - 5

1шт.

2

87410948

CONTACT HOUSING,Female, 26 Pole

281M

1шт.

3

280451A1

CONNECTOR,ELECTRIC

Secondary CAN BUS, 133M

1шт.

4

223688A1

CONNECTOR, ELEC

421M

1шт.

5

276424A1

ELEC CONNECTOR,Female, 3 Pin

Cab Harness, 420MM

1шт.

6

435437A1

CABLE TIE,3/16" x 7 1/4"

4шт.
