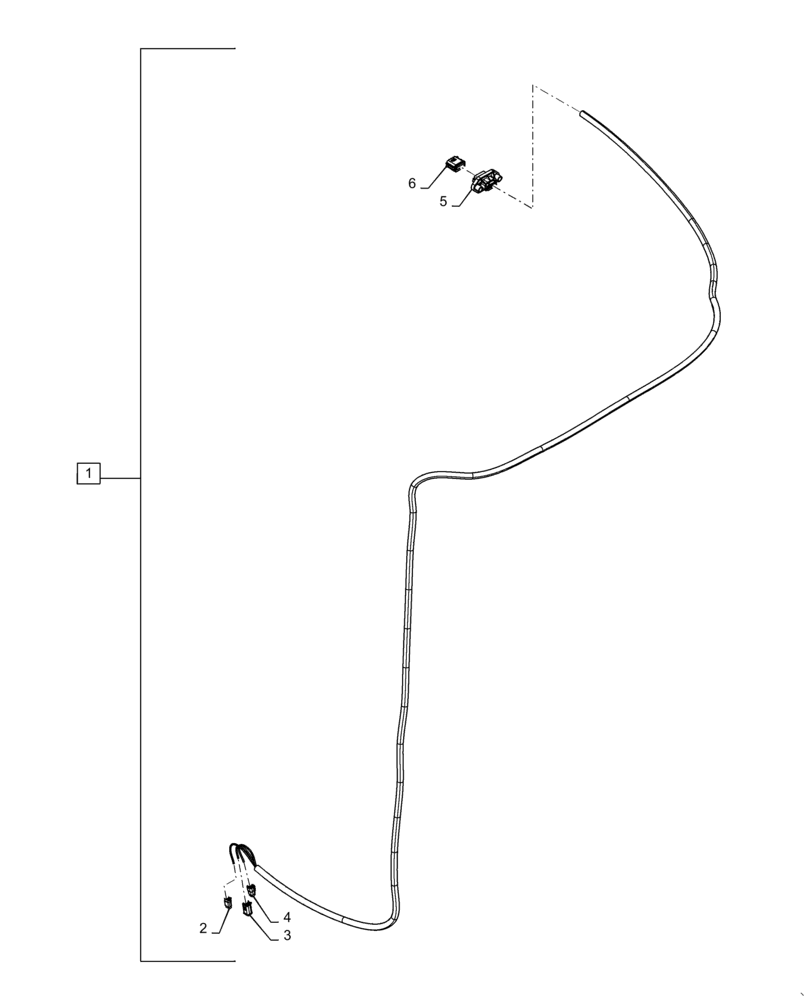

Запчасти Case IH PATRIOT 3340 (55.911.AC[08]) - GPS RECEIVER, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

1

47848404

WIRE HARNESS

GPS Antenna

1шт.

2

87706461

ELEC CONNECTOR

Female, 3 Pole, Outside Auto Guidance Harness, X-2F

1шт.

2

87697866

TERMINAL,Female, Nickel, 0.50 - 1.00mm

Female, Nickel, Solid Socket, Outside Auto Guidance Harness, X-2F

2шт.

2

84807680

PLUG

Cavity, Red, Outside Auto Guidance Harness, X-2F

1шт.

2

87705586

WEDGE

Lock, 3 Way Plug, Outside Auto Guidance Harness, X-2F

1шт.

3

87694153

CONTACT HOUSING,Female, 4 Cavities

Outside Auto Guidance Harness, X-3F

1шт.

3

225365C1

SOCKET

Female, Gold, Stamped Socket, Outside Auto Guidance Harness, X-3F

4шт.

3

84074640

LOCKING TAB,Wedge Lock

Wedge Lock, 4 Way Plug, Outside Auto Guidance Harness, X-3F

1шт.

4

87696138

ELEC CONNECTOR

Female, 4 Pole, Outside Auto Guidance Harness, X-1F

1шт.

4

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Stamped, Outside Auto Guidance Harness, X-1F

4шт.

4

87696149

ELEC CONNECTOR

Wedge Lock, 4 Way Plug, Outside Auto Guidance Harness, X-1F

1шт.

5

47509924

ELEC CONNECTOR

Male, 12 Pole, GPS Antenna, X-737

1шт.

5

87695623

ELEC. TERMINAL PIN

Male, Nickel, Stamped Socket, GPS Antenna, X-737

6шт.

5

225365C1

SOCKET

Female, Gold, Stamped Socket, GPS Antenna, X-737

2шт.

5

84068583

PLUG,12 - 16 Ga, White

Cavity, GPS Antenna, X-737F

4шт.

5

87698541

LOCKING TAB,Wedge Lock, 12-Pin

Wedge Lock, 12 Way Plug, GPS Antenna, X-737

1шт.

6

87695592

CONTACT HOUSING,Female, 12 Pole

Cap, GPS Antenna, X-737F

1шт.

6

84068583

PLUG,12 - 16 Ga, White

GPS Antenna, X-737F

12шт.

6

87695651

LOCKING TAB,Wedge Lock

Lock, 12 Way Plug, GPS Antenna, X-737F

1шт.
