(29.218.AH[03]) - WHEEL HUBS

Запчасти Case IH PATRIOT 3340 (29.218.AH[03]) - WHEEL HUBS (29) - HYDROSTATIC DRIVE

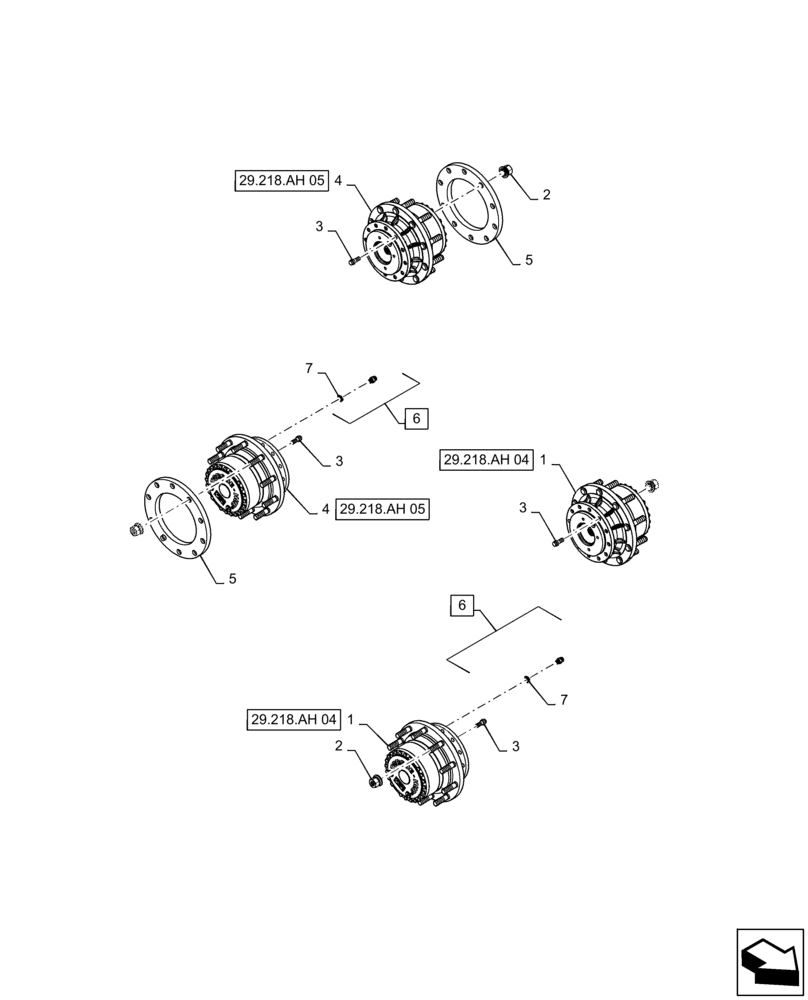

Схема запчастей Case IH PATRIOT 3340 - (29.218.AH[03]) - WHEEL HUBS (29) - HYDROSTATIC DRIVE
5
29.218.ah 05
3
1
3
2
3
7
29.218.ah 04
6
5
1
29.218.ah 05
6
7
29.218.ah 04
2
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84163261

HUB,Planetary

Planetary 21:1 W/ Lip Seal Lobed Brake, Front, Serial Range: -YGT044000

2шт.

1

47981802

HUB

Planetary 21:1 W/ Lip Seal Lobed Brake, Front, Start Serial: YGT044001

2шт.

2

BN315229

WHEEL NUT

22MM Flange

40шт.

3

BN304226

BOLT

12 Point, M16 x 45

72шт.

4

84163263

CARRIER,Assembly, Rear Planetary Gearbox

Planetary 28:1, W/ Lip Seal Lobed Brake, Rear, Serial Range: -YGT044000

2шт.

4

47982042

HUB

Planetary 28:1, W/ Lip Seal Lobed Brake, Rear, Start Serial: YGT044001

2шт.

4

84163263R

REMAN-WHEEL END ASSY

Rear, 28 To 1, Planetary

2шт.

4

84163263C

HUB

Return Number

2шт.

5

BN306152

SPACER

Rear Wheel

2шт.

6

BN302640

FITTING

9/16 -18 ORFS x 7/16 -20 ORB, Incl 7

4шт.

7

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4шт.
