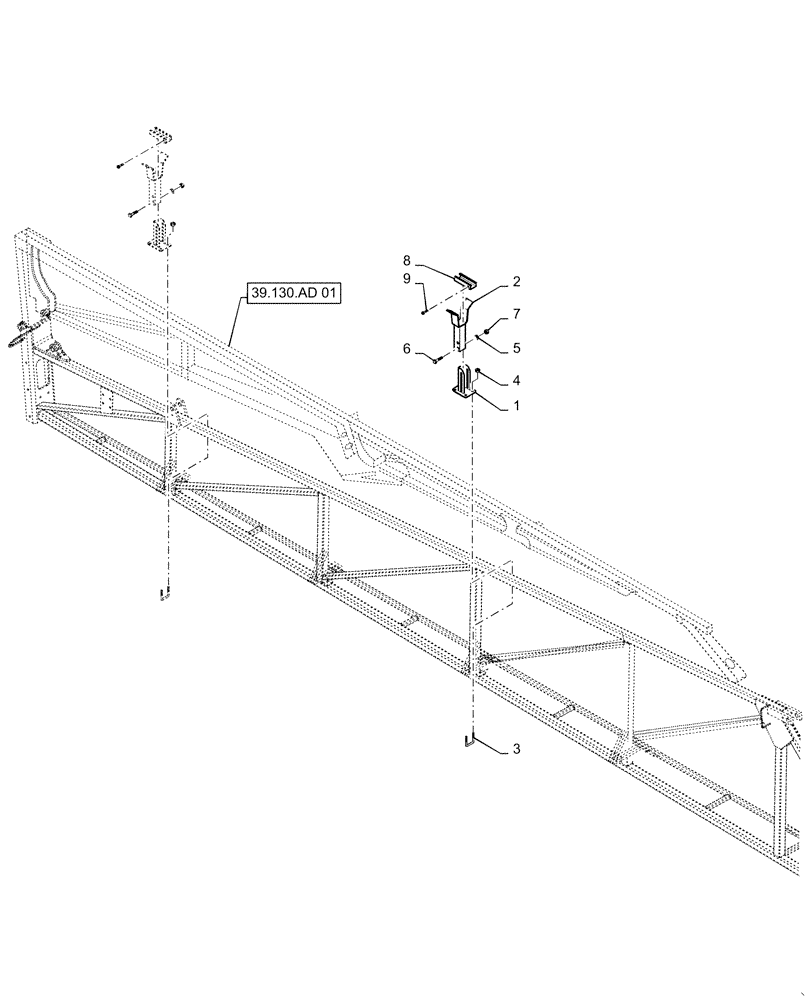

Запчасти Case IH PATRIOT 4440 (39.100.AT[05]) - BOOM CRADLE, OUTER ASSY, 90/100 BOOM (39) - FRAMES AND BALLASTING

1

87568915

SUPPORT

Lower Cradle

2шт.

2

87568911

SUPPORT

Upper Cradle

2шт.

3

BN319919

U-BOLT

2.06" ID x 2 - 3/4" x 3/8"

4шт.

4

87343970

NUT,3/8"-16, G8, DOR

8шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

6

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

8

87573707

CHANNEL

Snap - On, 1" x 2" x 6"

2шт.

9

84206102

SCREW,7/8" - 24

4шт.
