(39.130.AA[07]) - CENTER SECTION STABILIZER SHOCKS, 120 BOOM

Запчасти Case IH PATRIOT 4440 (39.130.AA[07]) - CENTER SECTION STABILIZER SHOCKS, 120 BOOM (39) - FRAMES AND BALLASTING

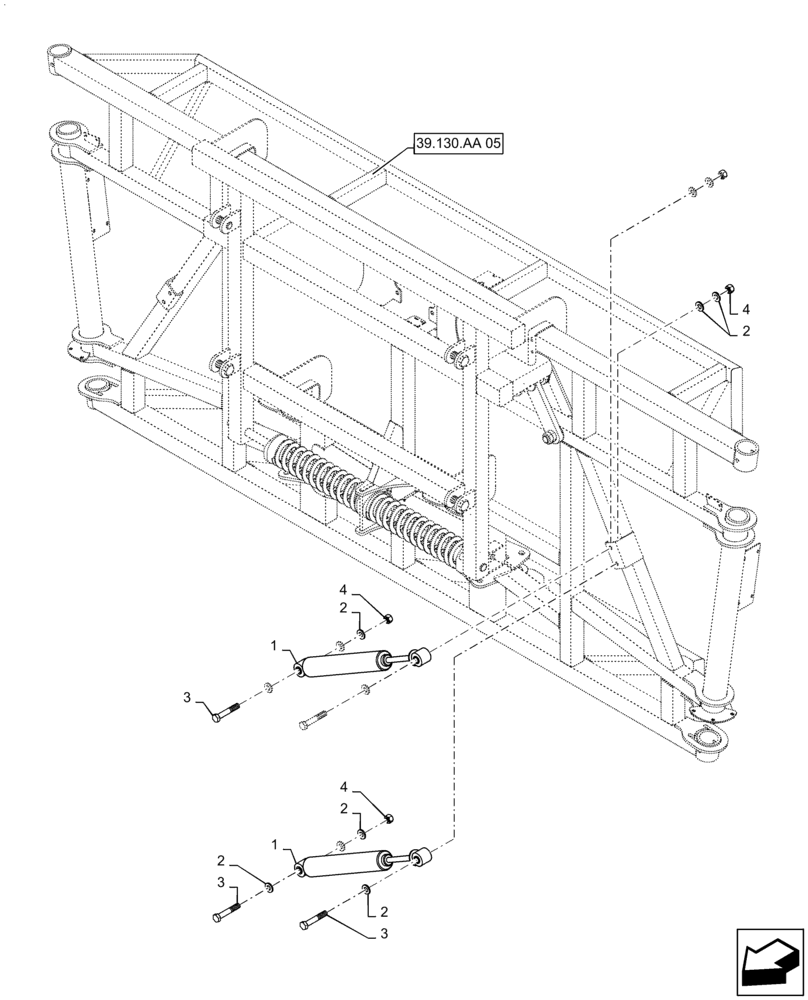

Схема запчастей Case IH PATRIOT 4440 - (39.130.AA[07]) - CENTER SECTION STABILIZER SHOCKS, 120 BOOM (39) - FRAMES AND BALLASTING
2
2
2
4
3
2
1
3
4
2
4
1
39.130.aa 05
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47592095

SHOCK ABSORBER

120' Center Section Boom Stabilizer

4шт.

2

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

28шт.

3

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

8шт.

4

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

8шт.

Выбрано товаров: 4
