(55.100.AF [01]) - WIRE HARNESS, TRACTION CONTROL

Запчасти Case IH PATRIOT 4440 (55.100.AF [01]) - WIRE HARNESS, TRACTION CONTROL (55) - ELECTRICAL SYSTEMS

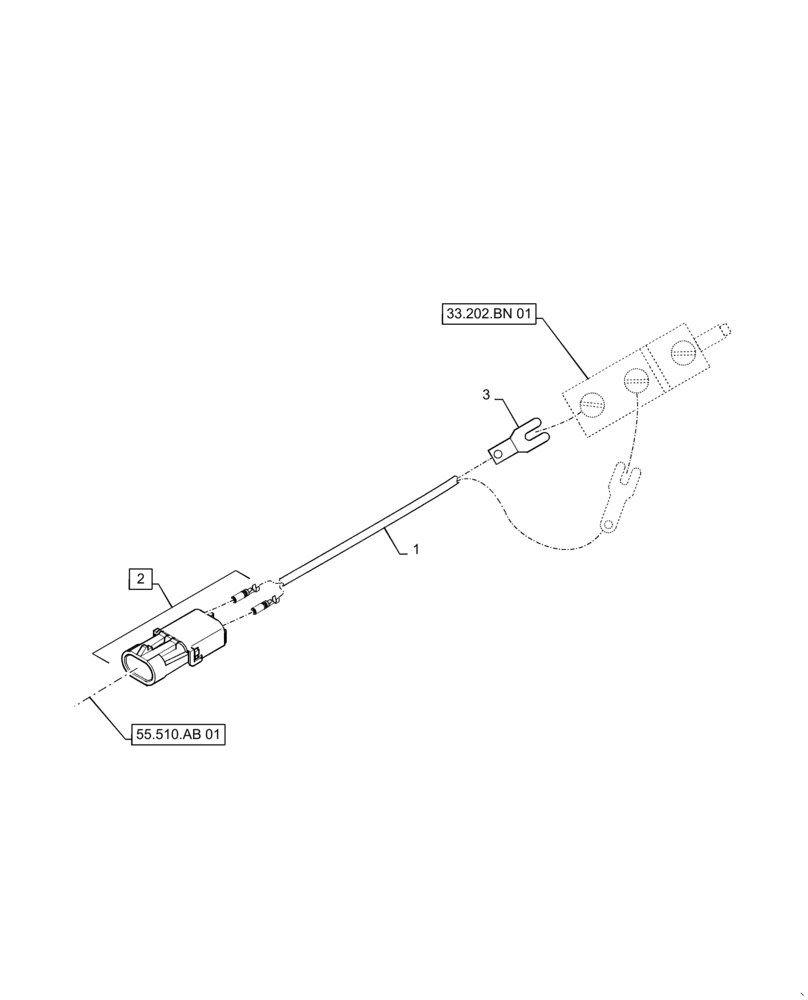

Схема запчастей Case IH PATRIOT 4440 - (55.100.AF [01]) - WIRE HARNESS, TRACTION CONTROL (55) - ELECTRICAL SYSTEMS
1
55.510.ab 01
33.202.bn 01
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84362133

HARNESS

Traction Control

1шт.

2

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

Traction Control, C058M

1шт.

2

84277536

TERMINAL CONNECTOR,Tin, 0.50 - 1.00mm

Terminal, Traction Control, C058M

2шт.

2

225124C1

SEAL,2 - 2.9 mm2

2шт.

3

84367698

SPADE TERMINAL,Tin, 2.50 - 6.00mm

Common Ground, C001/ N/O, C002

2шт.
