(55.101.AC[06]) - BOOM WIRE HARNESS, 90 6 SECTION LOW FLOW LAYOUT, BSN YGT044001

Запчасти Case IH PATRIOT 4440 (55.101.AC[06]) - BOOM WIRE HARNESS, 90 6 SECTION LOW FLOW LAYOUT, BSN YGT044001 (55) - ELECTRICAL SYSTEMS

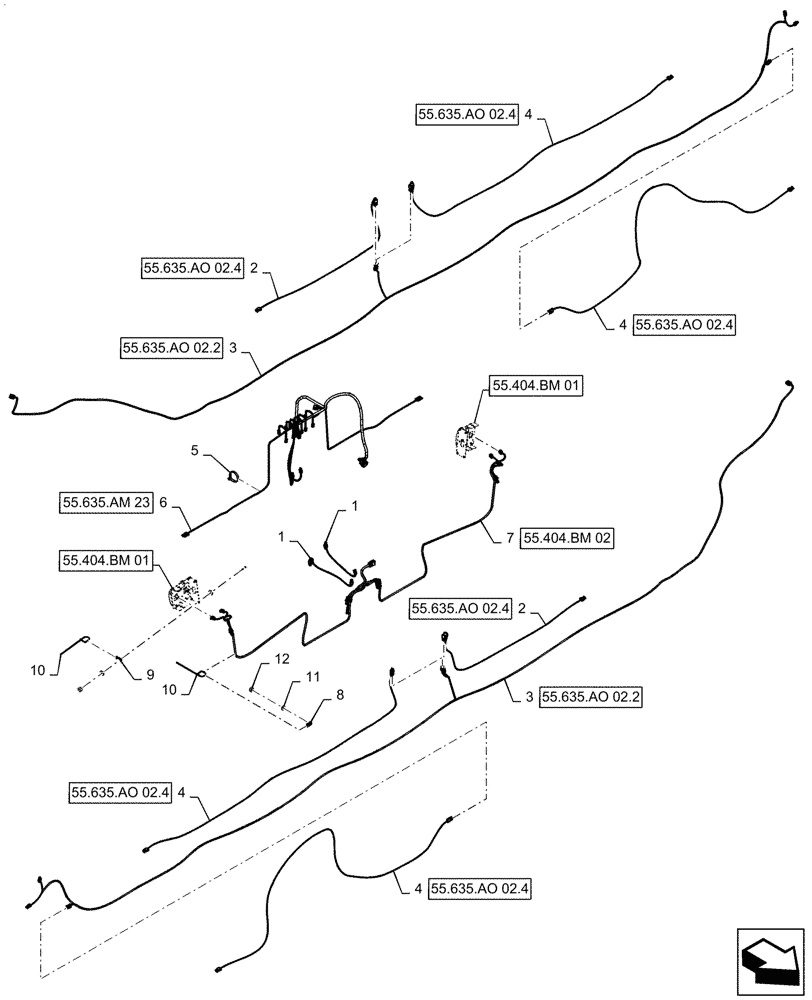

Схема запчастей Case IH PATRIOT 4440 - (55.101.AC[06]) - BOOM WIRE HARNESS, 90 6 SECTION LOW FLOW LAYOUT, BSN YGT044001 (55) - ELECTRICAL SYSTEMS
55.635.ao 02.2
11
4
1
9
3
2
2
4
4
8
10
5
4
7
1
6
3
10
12
55.635.ao 02.4
55.635.ao 02.4
55.635.ao 02.4
55.635.ao 02.4
55.635.ao 02.4
55.635.ao 02.4
55.404.bm 01
55.404.bm 01
55.635.am 23
55.404.bm 02
55.635.ao 02.2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86986400

SWITCH

Pressure, PLMF

2шт.

2

87270028

HARNESS

Valve Extension

2шт.

3

47492140

WIRE HARNESS

6 Section Boom

2шт.

4

BN24224

HARNESS

Center Boom

4шт.

5

86991007

CABLE TIE,509mm L

5шт.

6

84281621

HARNESS

Hydraulic Control

1шт.

7

47750805

WIRE HARNESS

Rear Light Extension

1шт.

8

84407295

BASE

Tie, M8 Stud

19шт.

9

84474186

BASE

Tie

2шт.

10

BN570007

STRAP

14" Zip Tie

21шт.

11

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

19шт.

12

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

19шт.
