(10.216.AI[01]) - FUEL TANK MOUNTING

Запчасти Case IH PATRIOT 4440 (10.216.AI[01]) - FUEL TANK MOUNTING (10) - ENGINE

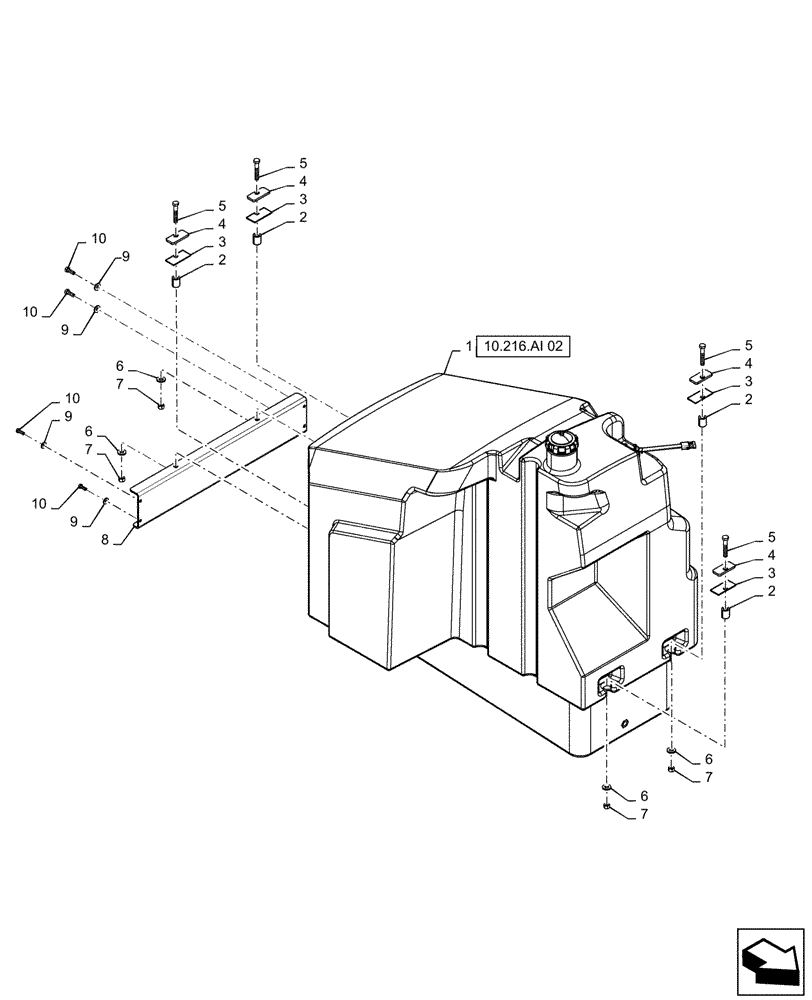

Схема запчастей Case IH PATRIOT 4440 - (10.216.AI[01]) - FUEL TANK MOUNTING (10) - ENGINE
9
9
5
5
6
2
7
4
10
4
10
6
3
9
3
3
2
4
4
10
4
4
3
3
10
10.216.ai 02
6
2
3
4
9
7
5
3
5
6
7
7
2
1
3
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47381280

FUEL TANK

Complete

1шт.

2

BN67653

BUSHING

TB, RD, Tank Bushing

4шт.

3

84237916

RUBBER MOUNTING

Adhesive Back

4шт.

4

BN67652

PLATE

Tank Hold Down

4шт.

5

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

4шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5mm x 28mm x 4mm, HTS DOR HDN

4шт.

7

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

4шт.

8

47594441

MOUNTING PLATE

Fuel Tank

1шт.

9

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

10

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.
