(55.911.AC[02]) - GPS RECEIVER, HARNESS &, MOUNTING BRACKET

Запчасти Case IH PATRIOT 4440 (55.911.AC[02]) - GPS RECEIVER, HARNESS &, MOUNTING BRACKET (55) - ELECTRICAL SYSTEMS

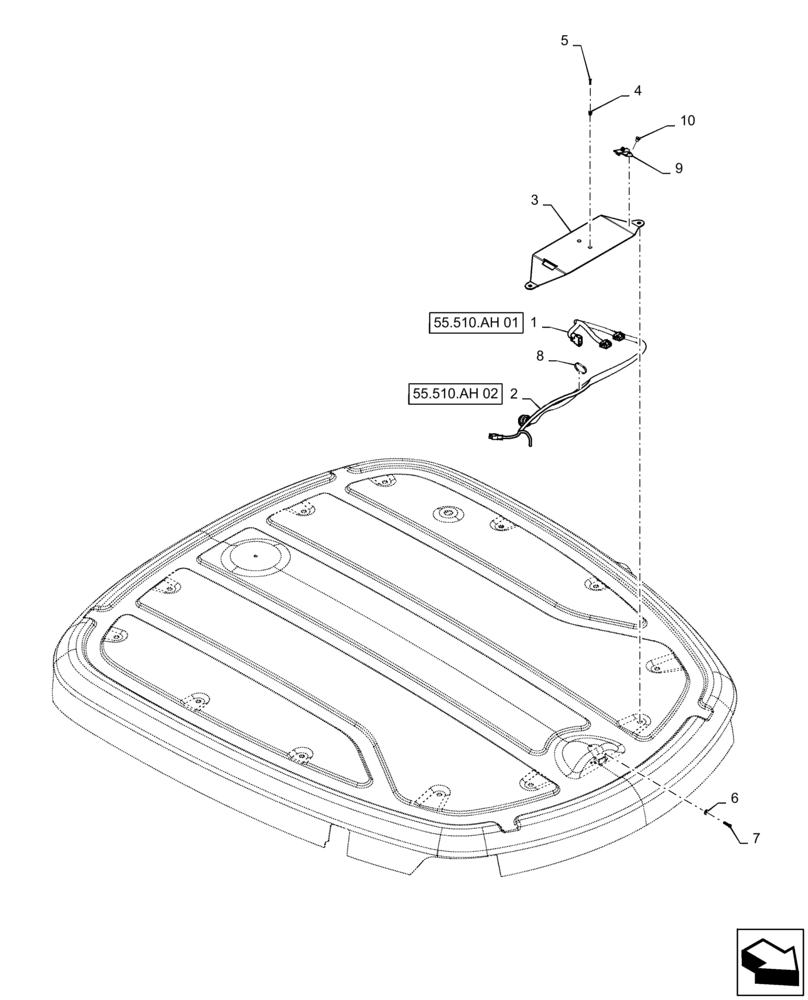

Схема запчастей Case IH PATRIOT 4440 - (55.911.AC[02]) - GPS RECEIVER, HARNESS &, MOUNTING BRACKET (55) - ELECTRICAL SYSTEMS
10
55.510.ah 02
2
5
4
7
1
55.510.ah 01
8
6
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84258905

HARNESS

GPS Antenna, Roof

1шт.

2

47475187

WIRE HARNESS

GPS Antenna, Sub-Roof

1шт.

3

84416197

BRACKET

GPS

1шт.

4

451165A1

THREADED INSERT

M5

1шт.

5

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

7

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

2шт.

8

435437A1

CABLE TIE,3/16" x 7 1/4"

1шт.

9

87308870

LATCH

GPS Antenna

1шт.

10

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

2шт.
