(90.100.AU[02]) - REAR HOOD, MOUNTING PARTS

Запчасти Case IH PATRIOT 4440 (90.100.AU[02]) - REAR HOOD, MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

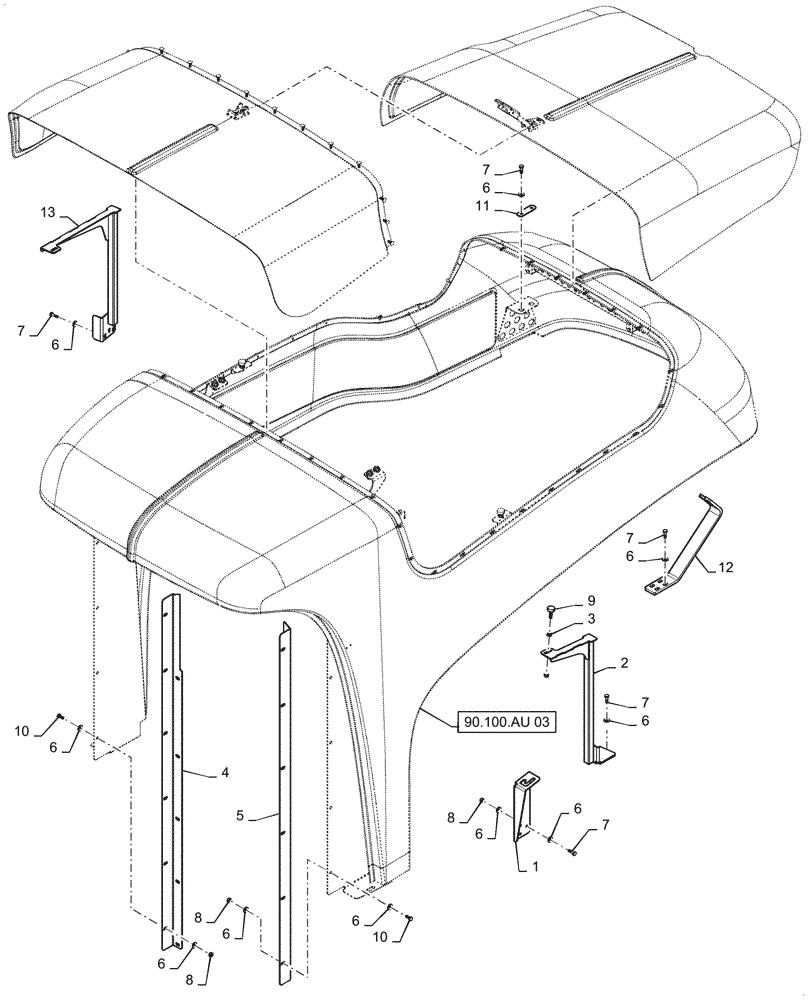

Схема запчастей Case IH PATRIOT 4440 - (90.100.AU[02]) - REAR HOOD, MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.100.au 03
8
9
6
10
6
12
7
7
6
3
8
6
6
7
10
6
6
2
1
5
11
6
4
7
13
6
8
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47383107

BRACKET

Support, Prop Rod, Front

1шт.

2

47480630

BRACKET

LH Engine Hood Support

1шт.

3

86521605

FLANGE NUT,5/16"-18, Cl 5

4шт.

4

47448882

BRACKET

Mount, RH, Front

1шт.

5

47448884

BRACKET

Mount, LH Front

1шт.

6

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

51шт.

7

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

28шт.

8

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

11шт.

9

47736549

BUMPER

Rubber, Adjustable

2шт.

10

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

12шт.

11

47535956

PLATE

Engine Mount, Rear

2шт.

12

48017542

BRACKET

Prop Rod, Rear

1шт.

13

47480628

BRACKET

RH Hood Support

1шт.
