(90.156.AL[01]) - CAB GLASS FRONT AND REAR

Запчасти Case IH PATRIOT 4440 (90.156.AL[01]) - CAB GLASS FRONT AND REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

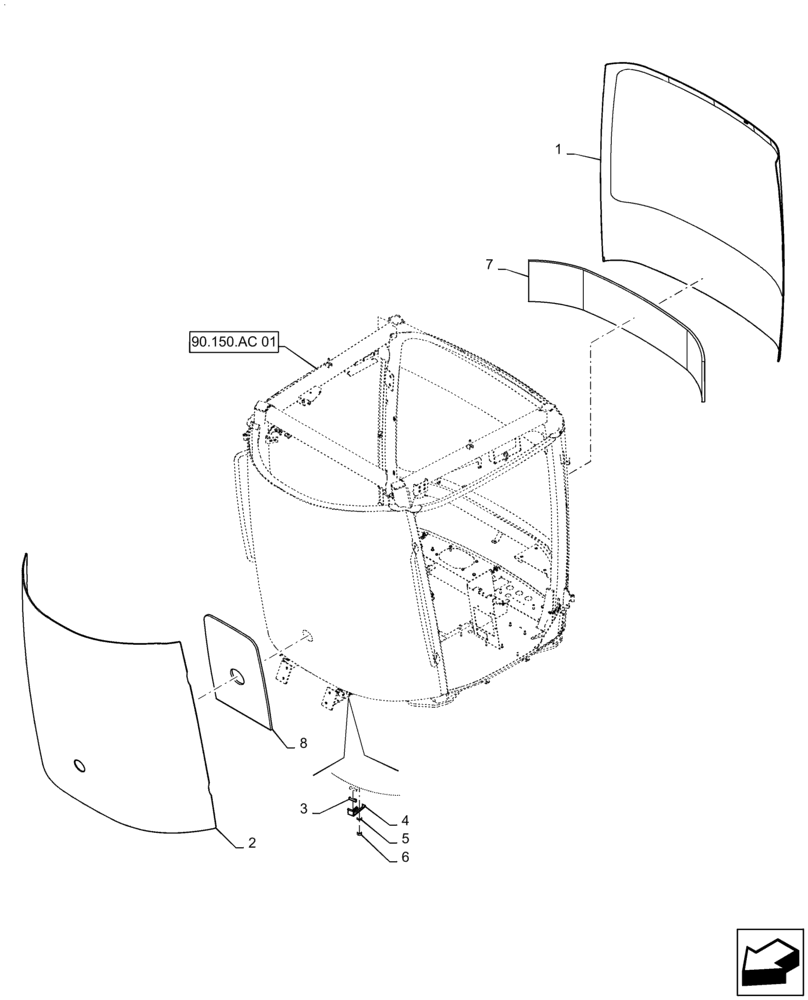

Схема запчастей Case IH PATRIOT 4440 - (90.156.AL[01]) - CAB GLASS FRONT AND REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
1
7
2
5
6
90.150.ac 01
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47512797

GLASS

Rear

1шт.

2

47537816

WINDSHIELD

Front

1шт.

3

87543673

SPACER

Bonded Glass

48шт.

4

117707A3

CLAMP

Window

5шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

ZND

4шт.

6

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

ZND

4шт.

7

259462A1

FOAM INSULATION

Rear Window

1шт.

8

87309622

FOAM INSULATION

Front Windshield

1шт.
