(09-016) - BOOM PLBG, GROUP, 5-SEC. 80

Запчасти Case IH SPX3200 (09-016) - BOOM PLBG, GROUP, 5-SEC. 80 Liquid Plumbing

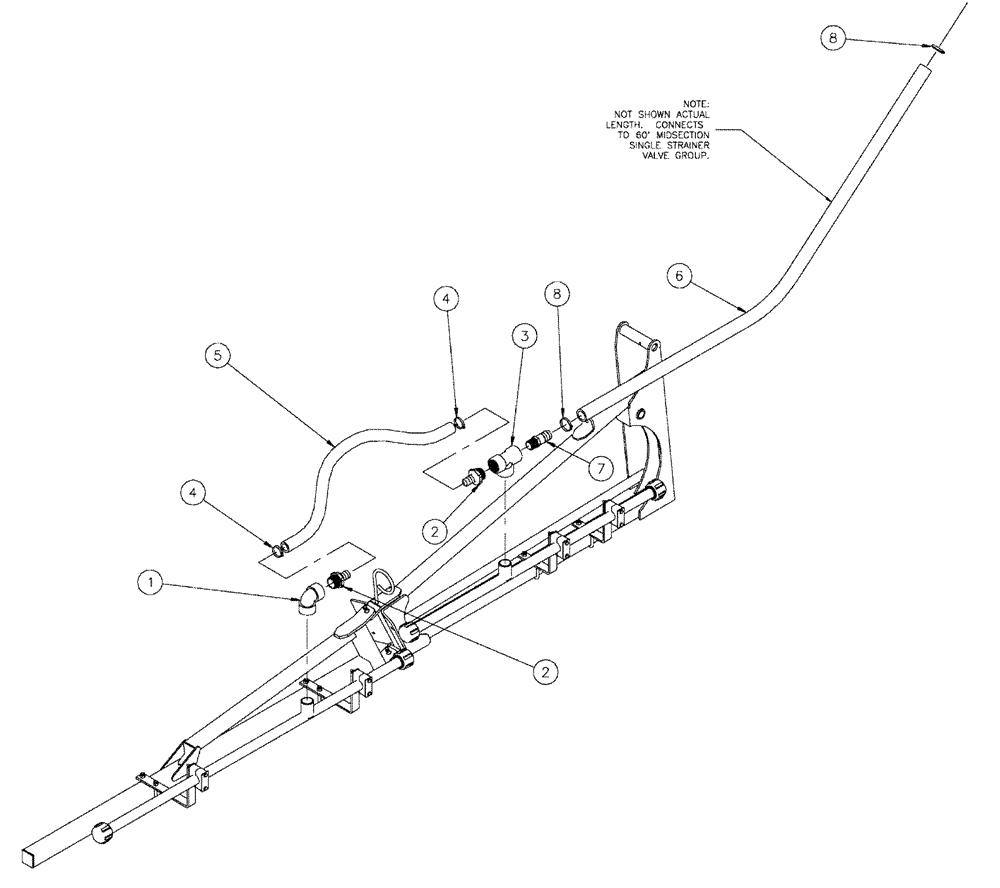

Схема запчастей Case IH SPX3200 - (09-016) - BOOM PLBG, GROUP, 5-SEC. 80 Liquid Plumbing
4
2
2
7
3
8
1
8
4
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

3

BN73662

TEE

1-1/4", Poly

1шт.

4

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

5

BN53747

FLEXIBLE HOSE,1.00" ID x 48.00"

Suction

1шт.

6

342229A1

HOSE

1 1/4" x 80" Suction

1шт.

7

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

8

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.
