/ / / / / / / / (12-012) - FUSE AND RELAY PANEL

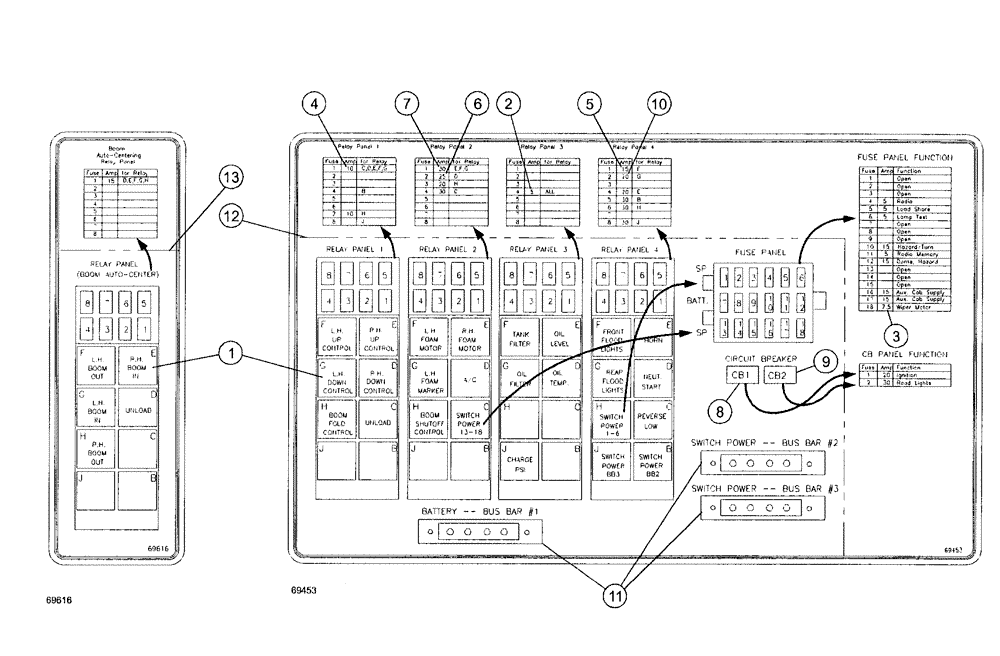

Запчасти Case IH SPX3200 (12-012) - FUSE AND RELAY PANEL (55) - ELECTRICAL SYSTEMS
10
13
5
8
3
4
6
7
2
1
12
11
9
1
BN16287
RELAY
Hella, STDP 30A
31шт.
2
9623775
FUSE,5 Amp
5шт.
3
BN16303
FUSE
ATC, 7.5 Amp
1шт.
4
BN16304
FUSE
ATC, 10 Amp
2шт.
5
84090658
FUSE,Lt Blue, 15 Amp
15 Amp
6шт.
6
BN16306
FUSE
ATC, 25 Amp
1шт.
7
BN16307
FUSE
ATC, 30 Amp
5шт.
8
BN304962
CIRCUIT-BREAKER
20 Amp Type 1
1шт.
9
BN16309
CIRCUIT BREAKER
30 Amp T-1
1шт.
10
BN16311
FUSE
ATC, 20 Amp
3шт.
11
BN29444
BAR
Bus
3шт.
12
BN68488
MOUNTING PARTS
fuse relay
1шт.
13
BN68780
MOUNTING PARTS
Auto Centering
1шт.
