(199) - RAVEN CONTROLLER

Запчасти Case IH SPX3200B (199) - RAVEN CONTROLLER (55) - ELECTRICAL SYSTEMS

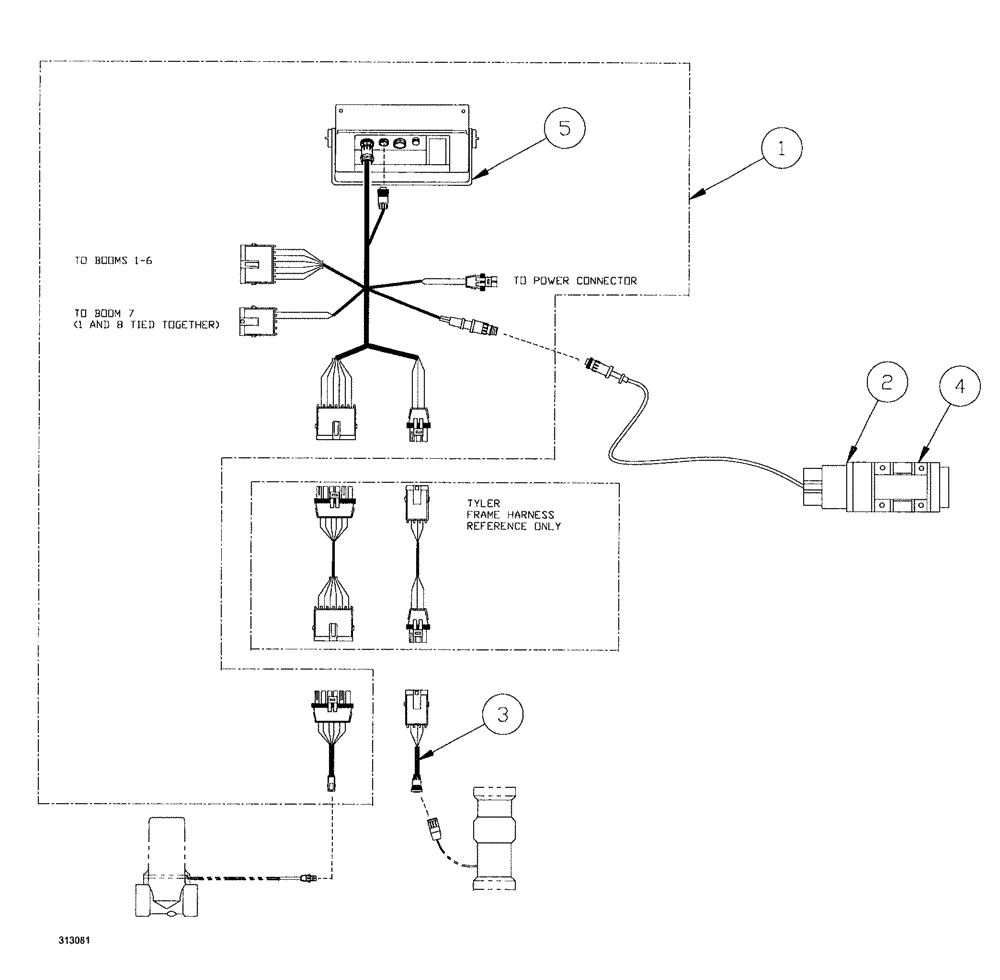

Схема запчастей Case IH SPX3200B - (199) - RAVEN CONTROLLER (55) - ELECTRICAL SYSTEMS
3
5
2
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313986

CONTROL

system, Raven SCS 460

1шт.

BN306824

HARNESS

valve, extension

1шт.

» Indicates parts of an "assembly"

1шт.

BN314211

WIRE HARNESS

Console

1шт.

» Indicates parts of an "assembly"

1шт.

BN323406

CONTROL UNIT

Raven SCS 460

1шт.

» Indicates parts of an "assembly"

1шт.

2

BN95030A

RADAR

Ground Speed

1шт.

2

BN95030AR

SENSOR

SPX3200B SPX-SERIES PATRIOT SPRAYER, Ground Speed (11/99-11/01)

1шт.

2

BN95030AC

CORE-SENSOR

Return Number

1шт.

3

BN69626

HARNESS

flowmeter adapter

1шт.

4

BN98411

BRACKET

Kit, Mtg - Radar Gun

1шт.

5

BN69629

SUPPORT

Raven Controller

1шт.
