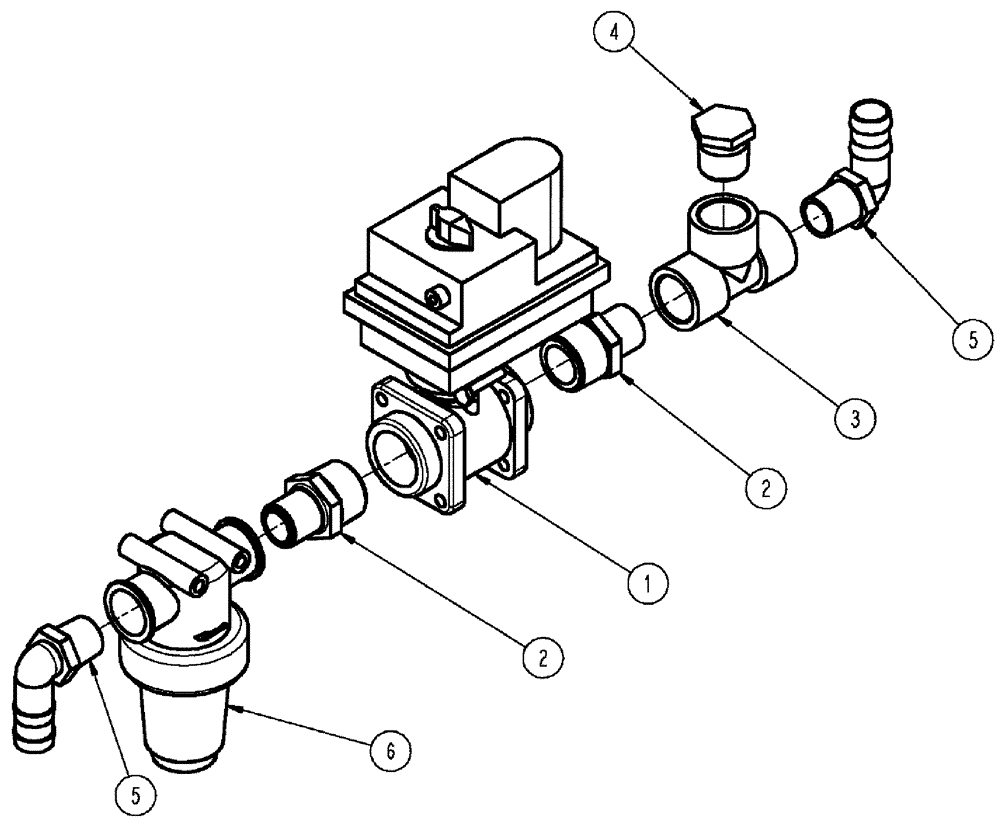

Запчасти Case IH SPX3310 (09-014) - VALVE PLUMBING GROUP, 5 SECTION Liquid Plumbing

1

87268179

VALVE

1.25" Ball, Electric

1шт.

2

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

2шт.

3

BN73629

TEE

1" Poly Pipe

1шт.

4

BN73604

PLUG,1" Poly Pipe Plug

1" NPT, Pipe Poly

1шт.

5

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

6

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

See Fig. 09-034

1шт.
