(09-022) - BOOM PLUMBING GROUP, 5 & 6 SECTION 90 10" ON

Запчасти Case IH SPX3310 (09-022) - BOOM PLUMBING GROUP, 5 & 6 SECTION 90 10" ON Liquid Plumbing

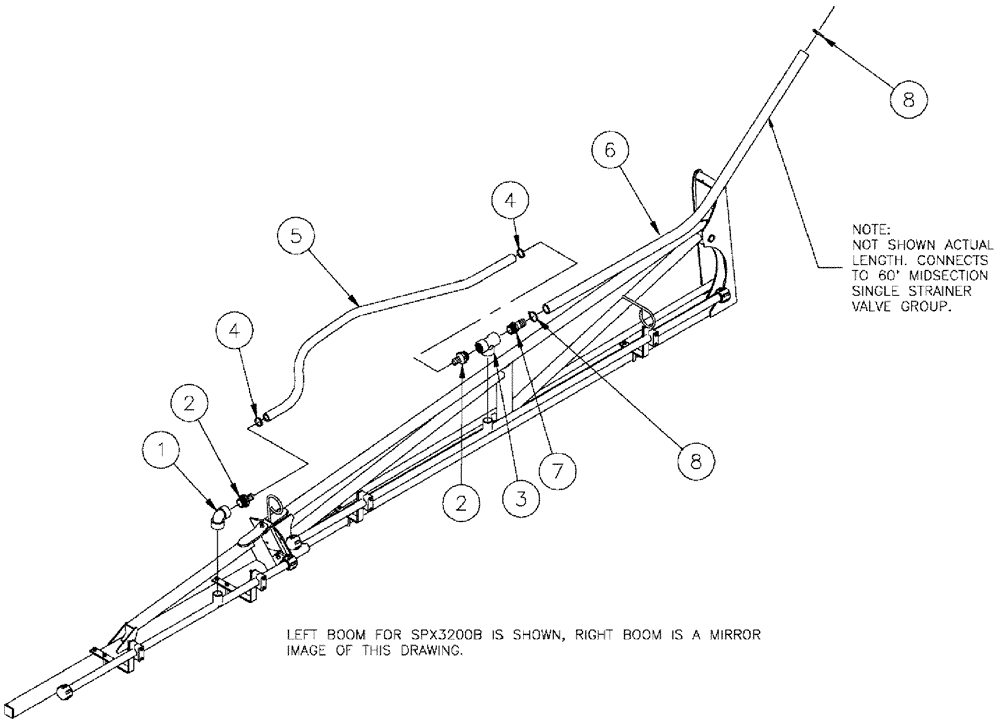

Схема запчастей Case IH SPX3310 - (09-022) - BOOM PLUMBING GROUP, 5 & 6 SECTION 90 10" ON Liquid Plumbing
1
4
8
7
4
2
5
6
3
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313202

ELBOW

1-1/4" NPT 90 DEG

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

3

BN73662

TEE

1-1/4", Poly

1шт.

4

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

5

BN321636

HOSE,1.00" ID x 78.00"

EPDM

1шт.

6

87383454

HOSE,80.00 mm

1шт.

7

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

8

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.
