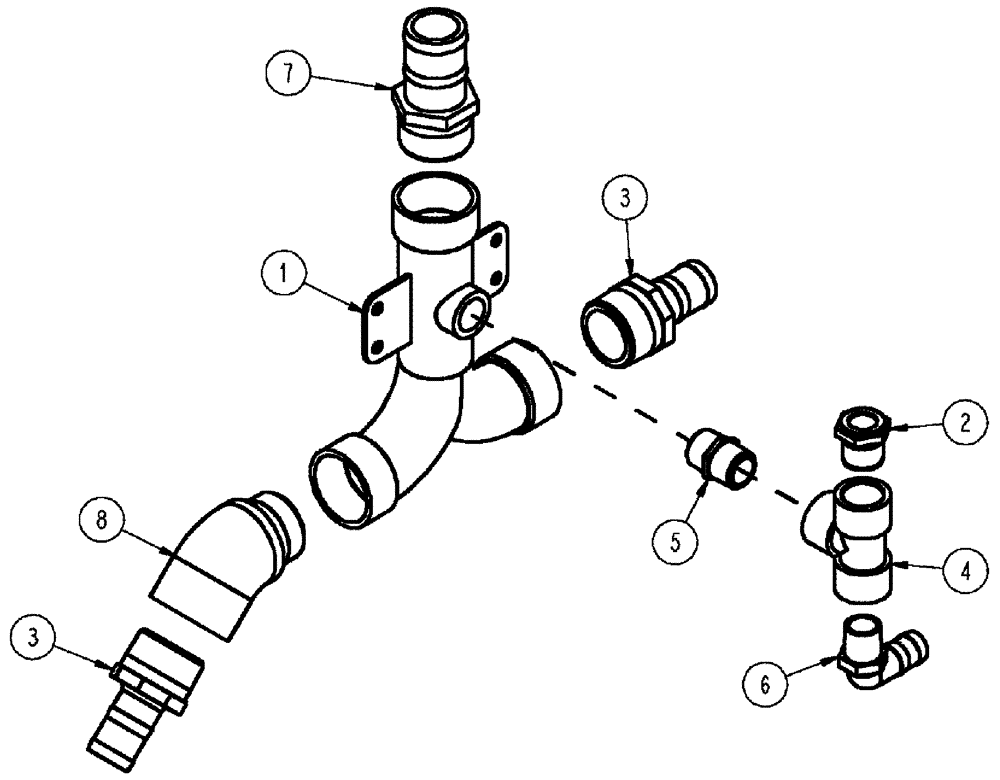

Запчасти Case IH SPX3310 (09-029) - MANIFOLD GROUP, 5 SECTION Liquid Plumbing

1

BN319213

MANIFOLD,2" Female NPT x 2" Female NPT x 2" Female NPT, Poly

3-WAY

1шт.

2

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

3

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

2шт.

4

BN73629

TEE

1" Poly Pipe

1шт.

5

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

6

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

7

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

8

BN73793

ELBOW,45 Degree Elbow, 2" Female NPT x 2" Female NPT, Poly

45 STR-2" NPT POLY

1шт.
