(10-008) - SPEED IDENTIFICATION GROUP

Запчасти Case IH SPX3310 (10-008) - SPEED IDENTIFICATION GROUP (13) - DECALS

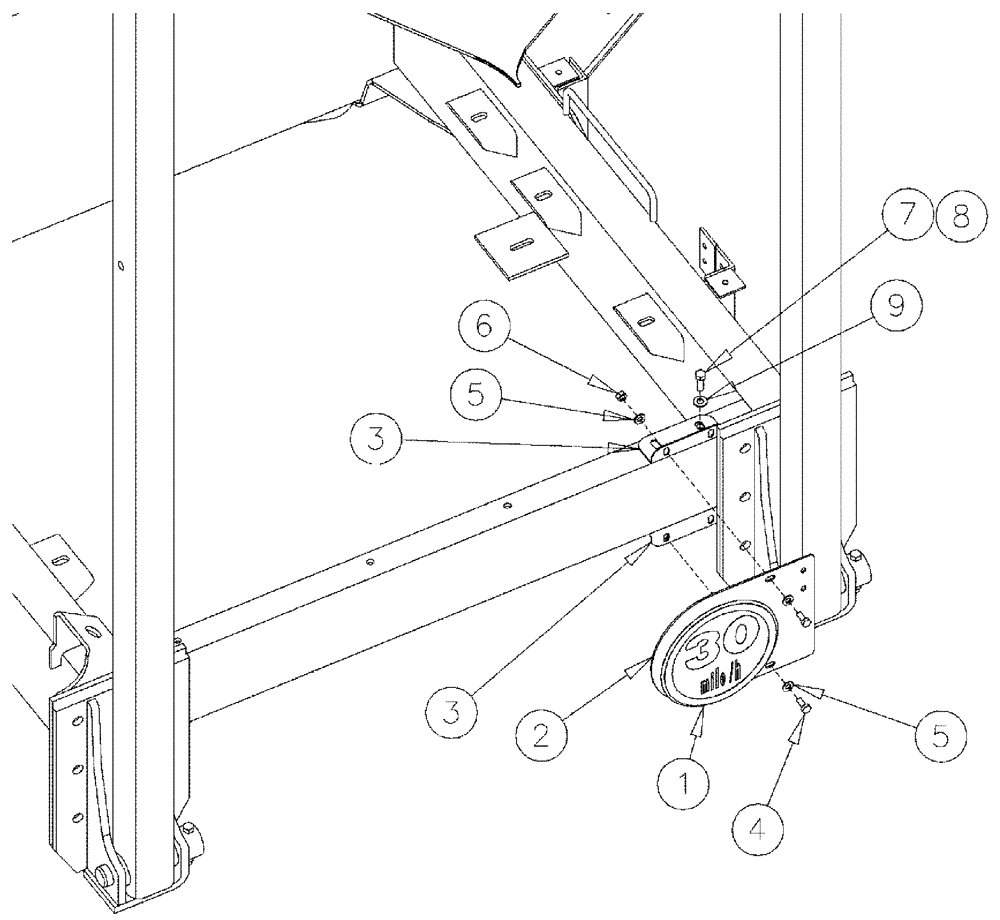

Схема запчастей Case IH SPX3310 - (10-008) - SPEED IDENTIFICATION GROUP (13) - DECALS
5
1
7
3
5
6
8
4
3
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87522628

DECAL

30 MPH Speed Sign

1шт.

2

87523676

PLATE

SIS MOUNT

1шт.

3

87543912

MOUNT

SIS Decal

2шт.

4

BN50476

BOLT,5/16"-18 x 0.75", Stainless

2шт.

5

BN50142

WASHER,5/16", Stainless Steel

4шт.

6

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

7

87342767

BOLT

3/8"-16 x 1-1/2", G5, Full Thd

2шт.

8

87343970

NUT,3/8"-16, G8, DOR

2шт.

9

87529237

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

0.406 x 0.812 x 0.065, HTS, DOR, HDN

1шт.
