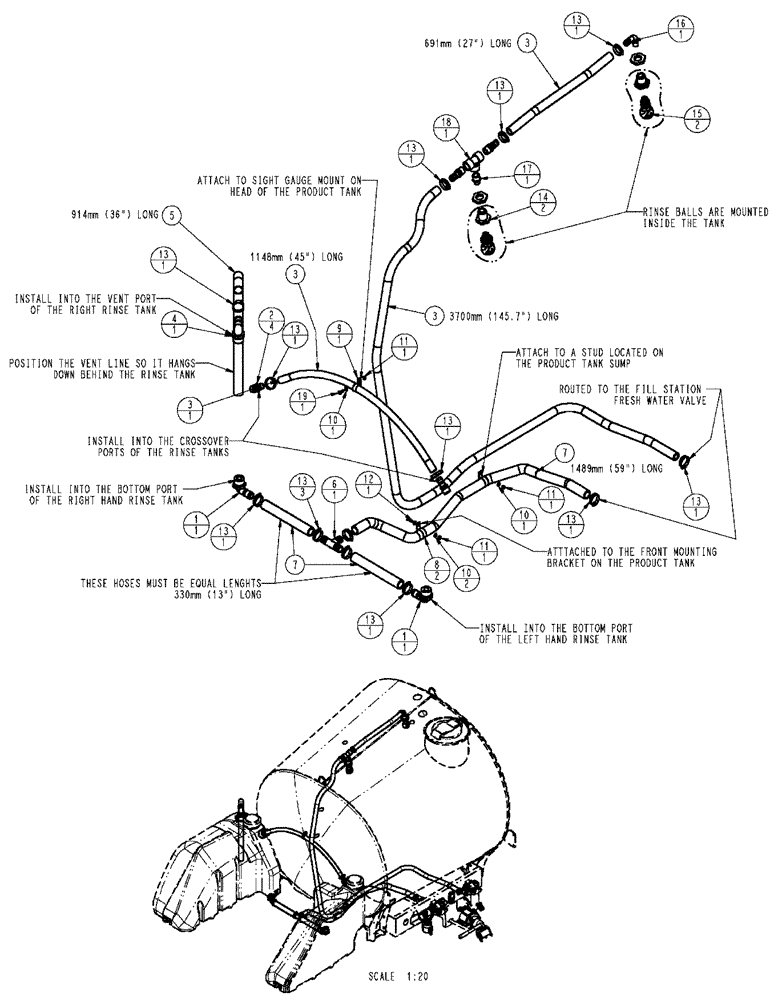

Запчасти Case IH SPX3320 (09-004) - RINSE TANK, PLUMBING Liquid Plumbing

1

BN308040

FITTING,1-1/2" Male Thread x 1-1/4" 90 Degree Hose Barb

1.5 NPT, 1.25 HB, 90º

2шт.

2

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

3

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1шт.

4

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

5

BN53842

HOSE,38.10 mm ID Bulk

Discharge

3шт.

6

BN317579

TEE

Hose Barb, 1 1/4"

1шт.

7

87271155

HOSE,1.25" ID

Suction, Standard

1шт.

8

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

2шт.

9

515-23365

CLAMP,1 7/16", Insul, 3/8" Bolt

1шт.

10

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

11

9991588

NUT,M8 x 1.25, Cl 8

3шт.

12

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

13

BN310448

HOSE CLAMP

#28, Stainless Steel

13шт.

14

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

2шт.

15

343509A1

JET

NOZZLE, Rinse (360) With Adapter

2шт.

16

134271C2

ELBOW,ELBOW, 90

poly 90º 3/4" mpt x 1" hb

1шт.

17

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

18

BN73629

TEE

1" Poly Pipe

1шт.

19

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.
