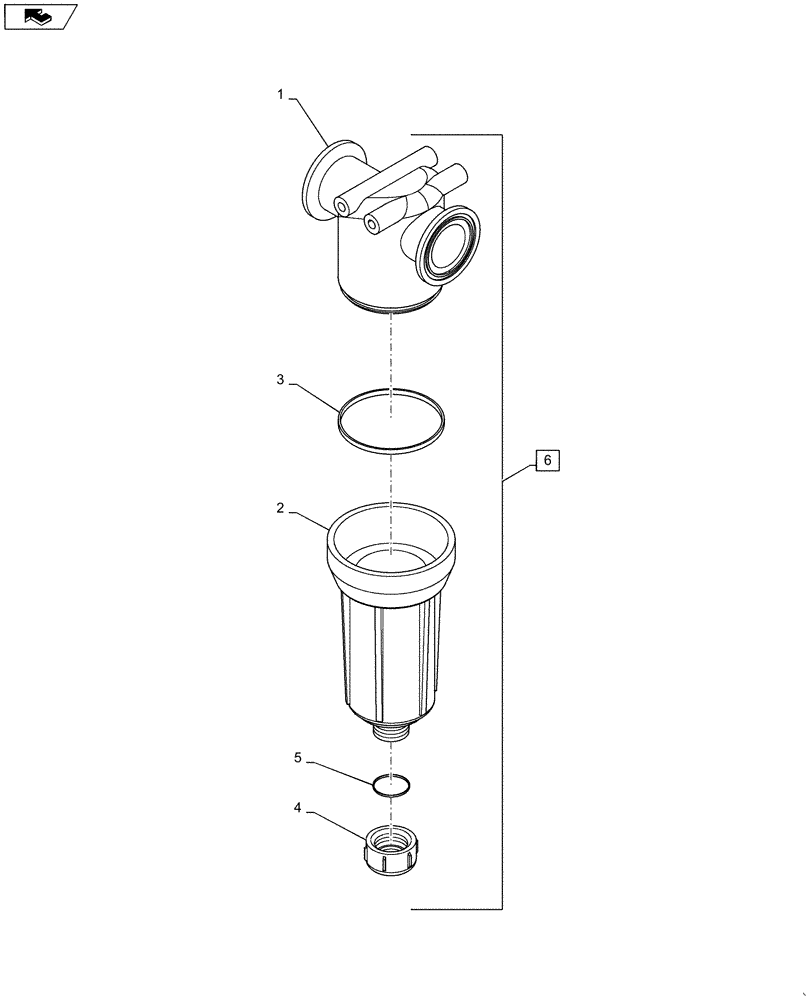

Запчасти Case IH SPX3320 (09-029) - STRAINER, 2" FLS Liquid Plumbing

1

87268603

HEAD

Strainer

1шт.

2

87268606

PAN

Bowl, Gray

1шт.

3

87268605

GASKET

EPDM, Bowl

1шт.

4

87265585

COVER

Cap, 1" NPT, Without Ring Groove

1шт.

5

87270666

GASKET

Gasket, EPDM Cap

1шт.

6

87265489

FILTER STRAINER

Strainer, 2" Flange, Includes Ref 1 - 5

1шт.

7

87268604

SCREEN,16 Mesh, SST, Gray

16 Mesh, Lo-Flow Strainer Near Flowmeter, Not Shown

1шт.

7

87265492

SCREEN,80 Mesh, SST, Blue

80 Mesh, Lo-Flow, Center Section Manifold, Not Shown

1шт.

7

84294060

FILTER SCREEN,30 Mesh

30 Mesh, Not Shown

1шт.

7

87265491

SCREEN,50 Mesh, SST, Red

50 Mesh, Red, Not Shown

1шт.
