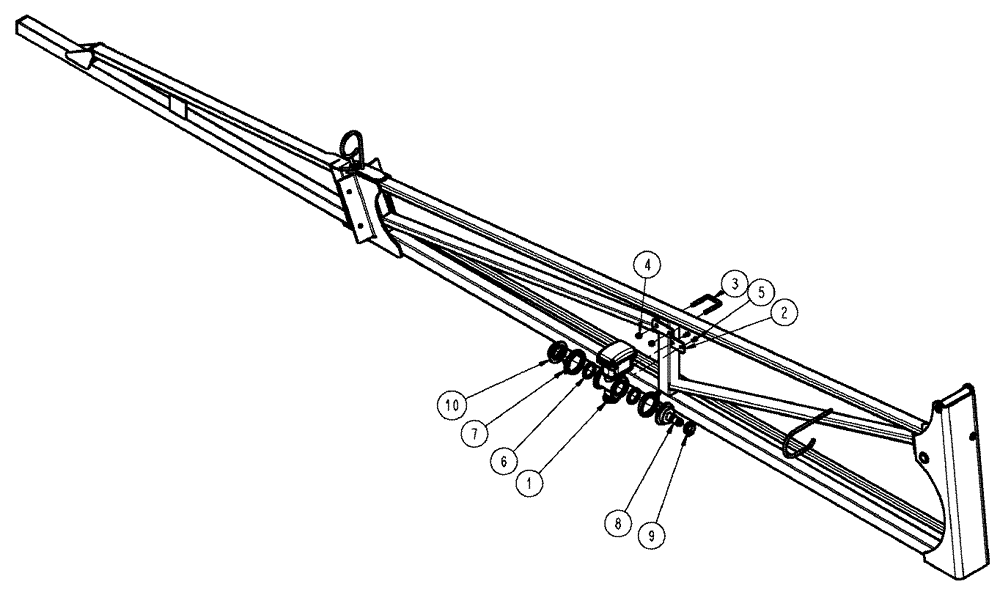

Запчасти Case IH SPX3320 (09-074) - BOOM VALVE PLUMBING, OUTER, LO-FLOW Liquid Plumbing

1

87268840

VALVE

Manifold-Boom

1шт.

See Fig. 09-079

1шт.

2

87265462

MOUNTING PARTS

RAVEN VALVE

1шт.

3

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

1шт.

4

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

5

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

6

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

1шт.

7

BN303199

CLAMP,2" Flange

2" Standard Flange

1шт.

8

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

1шт.

9

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

10

86984085

PLUG,2" Flange Plug

2" Manifold

1шт.
