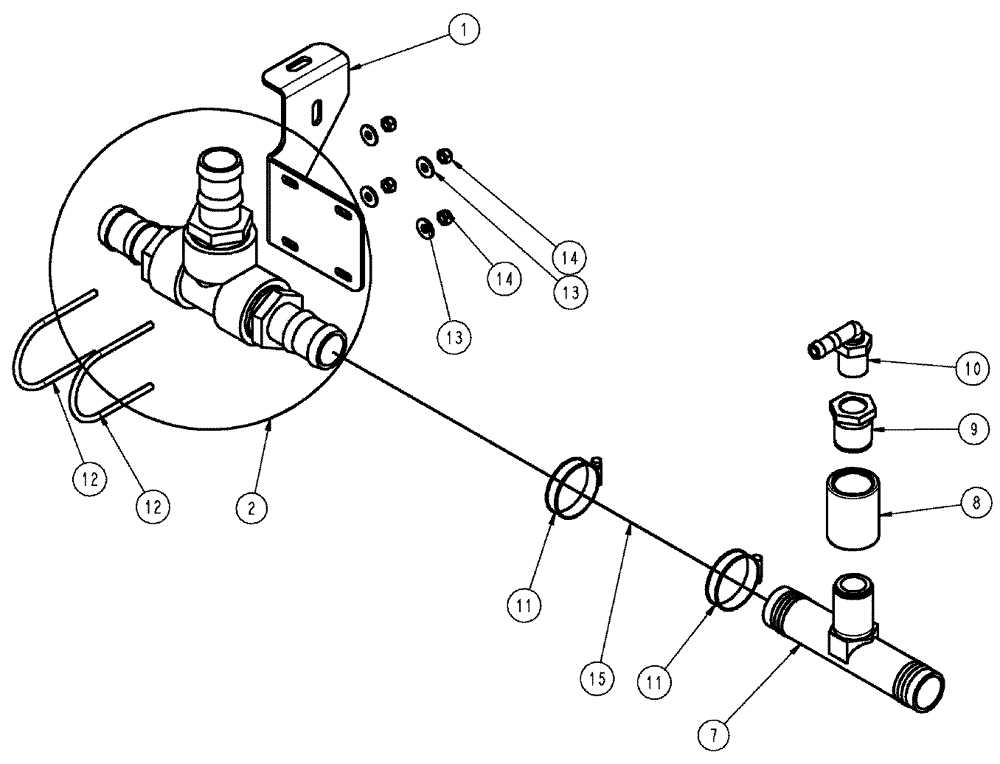

Запчасти Case IH SPX3320 (11-033) - CHEMICAL INDUCTOR TEE GROUP Options

1

BN320728

BRACKET

INDUCTOR, TEE

1шт.

2

87270968

VENTURI

assembly

1шт.

See Fig. 11-034

1шт.

7

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

1шт.

8

BN66968

COUPLING

1" Poly

1шт.

9

BN53665

BUSHING

1" x .75 Poly

1шт.

10

BN73578

FITTING

BARB, 3/4 NPT X 1/2 HB, 90

1шт.

11

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.

12

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

2шт.

13

BN50138

WASHER,1/4", SS

4шт.

14

BN55359

LOCK NUT,1/4"-20, SS

4шт.

15

BN324833

HOSE

Kanaflex

1шт.
