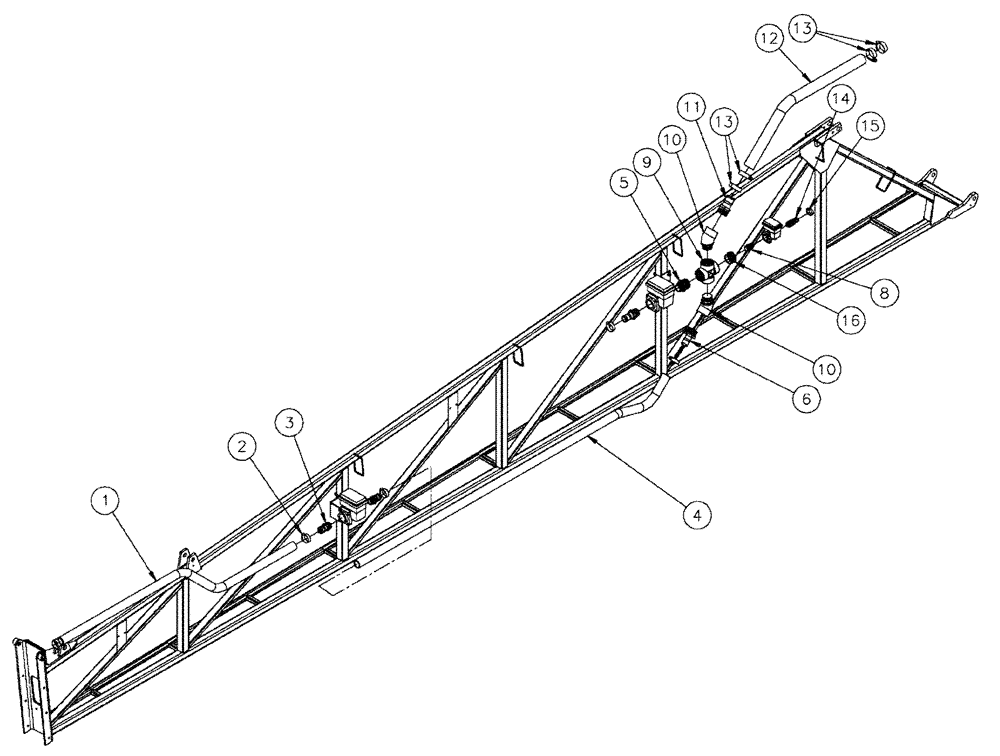

Запчасти Case IH SPX4260 (09-014) - BOOM, RH-LH FEED HS, 5 SECTION HIGH VOLUME Liquid Plumbing

1

342227A1

HOSE

1 1/2" x 160" Suction

1шт.

2

BN310448

HOSE CLAMP

#28, Stainless Steel

5шт.

3

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

3шт.

4

BN318050

HOSE,1.50" ID x 98.00"

EPDM

1шт.

5

BN73780

NIPPLE

2" x 1.5 Red Poly

1шт.

6

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

1шт.

8

BN73659

FITTING

NIPPLE 1 1/4 X Pipe Poly

1шт.

9

BN73791

CROSS

Cross, 2" NPT poly

1шт.

10

BN73793

ELBOW,45 Degree Elbow, 2" Female NPT x 2" Female NPT, Poly

45 STR 2" NPT Poly

2шт.

11

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

12

BN318049

HOSE,2.00" ID x 166.00"

EPDM

1шт.

13

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

4шт.

14

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

1шт.

15

BN310447

HOSE CLAMP

# 20, 304 SS

1шт.

16

BN73755

BUSHING,2" Male NPT x 1-1/4" Female NPT, Poly

2 X 1.25

1шт.
