(110) - TANK MOUNT ASSEMBLY

Запчасти Case IH SPX4260 (110) - TANK MOUNT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

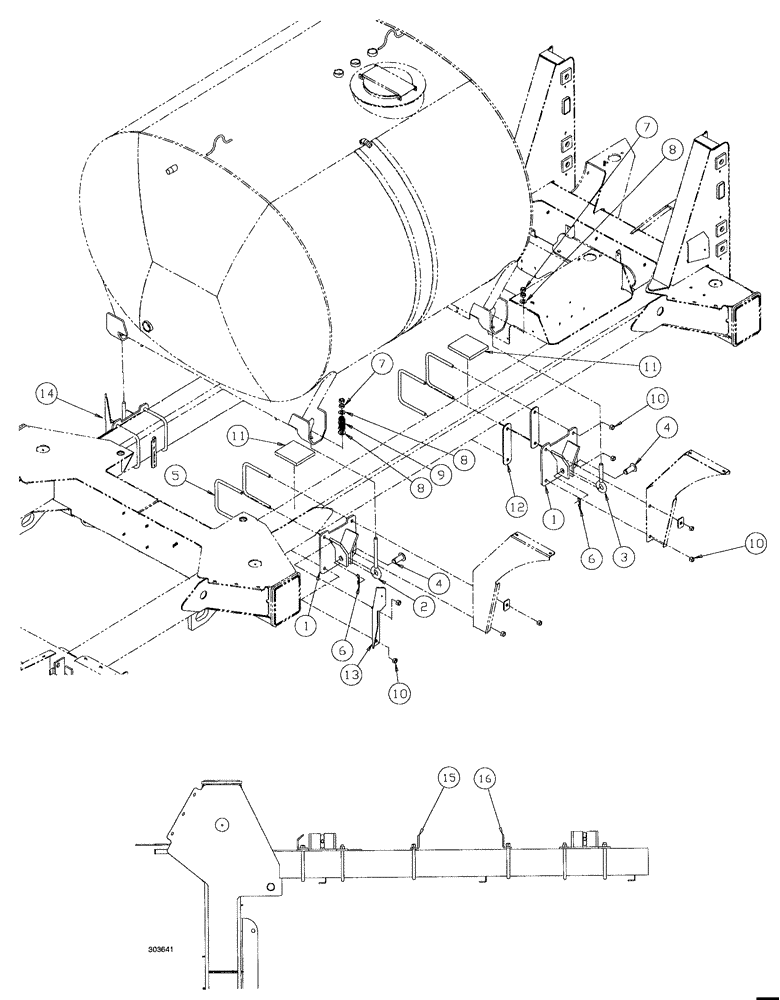

Схема запчастей Case IH SPX4260 - (110) - TANK MOUNT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
5
3
6
4
10
10
11
16
14
7
6
9
1
8
4
8
2
10
11
15
8
13
12
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN303286

MOUNTING PARTS

4шт.

2

BN21533

EYEBOLT

BOLT, EYE 3/4"-10 x 8

2шт.

3

BN21539

EYEBOLT

BOLT, EYE 3/4 X 6

2шт.

4

86986947

PIN,28.7mm OD x 76.45mm L

1.125 Dia. x 2.625

4шт.

5

BN312186

U-BOLT

BOLT "U" 16 mm x 8.125 x 8.06

10шт.

6

BN2297612

PIN

Clip 3/16" Dia x 3 3/4"

4шт.

7

98066

NUT 3/4"-10, G5

8шт.

For 21533

1шт.

8

BN50157

WASHER

3/4, G5

6шт.

9

BN312850

SPRING

1" ID x 4" Lg-Die

2шт.

10

832-46416

NUT,M16 x 2, Cl 8

20шт.

11

BN303946

PAD

mount - tank

4шт.

12

BN306310

PLATE

spacer

4шт.

13

BN313966

BRACKET

LH, hose support

1шт.

14

BN313965

BRACKET

RH, hose support

1шт.

15

BN310178

BRACKET

1шт.

16

BN310175

BRACKET

1шт.

16a

BN310163

TANK

1200 GAL foot

1шт.

16b

BN310164

TANK

1000 GAL foot

1шт.

BN2391314-001

GASKET

16" Manhole, Not Shown

1шт.

BN2391314-002

GASKET

10" Manhole, Not Shown

1шт.
