(118) - REAR WALKWAY ASSEMBLY

Запчасти Case IH SPX4260 (118) - REAR WALKWAY ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

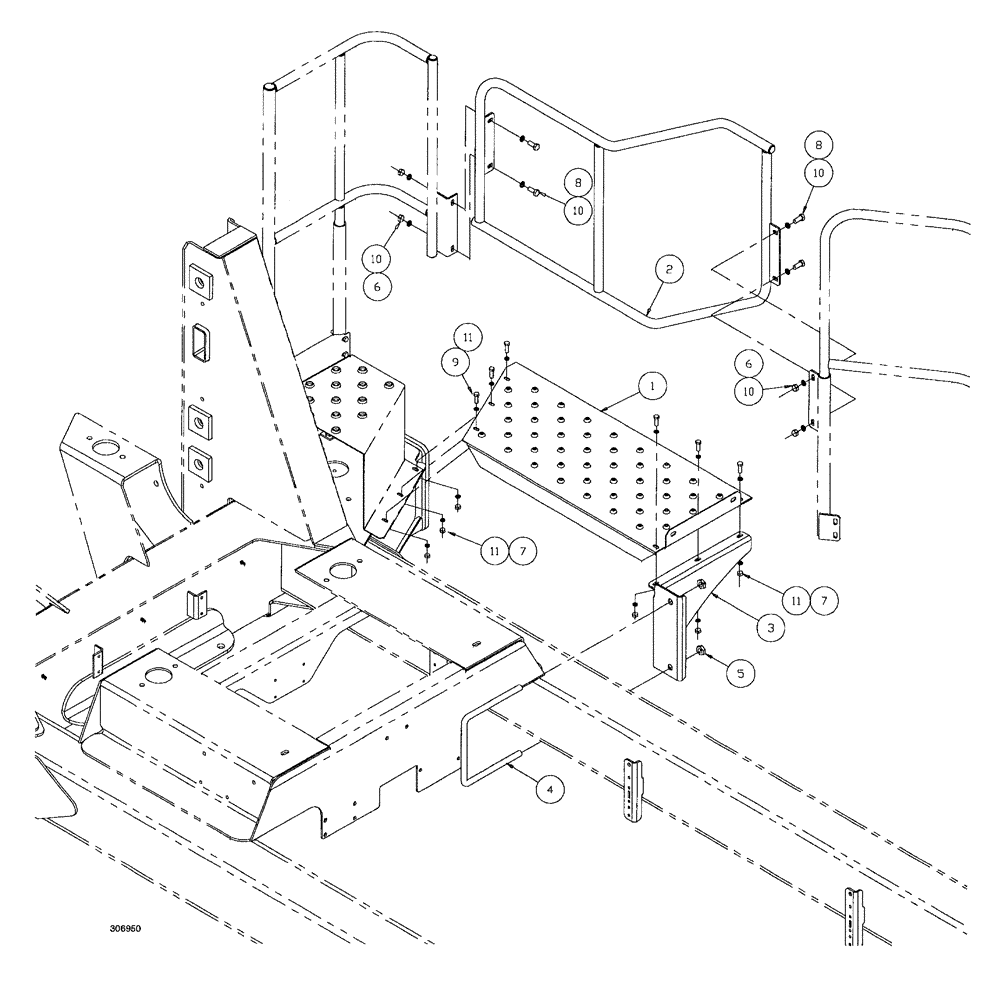

Схема запчастей Case IH SPX4260 - (118) - REAR WALKWAY ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
7
11
11
10
10
8
5
11
6
2
3
1
6
10
7
9
10
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN306894

PLATFORM

walkway - rear

1шт.

2

BN307589

RAIL

rear

1шт.

3

BN306552

SUPPORT

1шт.

4

BN312186

U-BOLT

BOLT "U" 16 mm x 8.125 x 8.06

1шт.

5

832-46416

NUT,M16 x 2, Cl 8

2шт.

6

BN304419

NUT

M10-1.5, NLN, 10.9

4шт.

7

86528579

NUT,M8 x 1.25

6шт.

8

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

4шт.

9

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

10

BN300499

WASHER,M10, 10.9

8шт.

11

BN300497

WASHER,M8, 10.9

12шт.
