(266) - INTERIOR DECALS

Запчасти Case IH SPX4260 (266) - INTERIOR DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

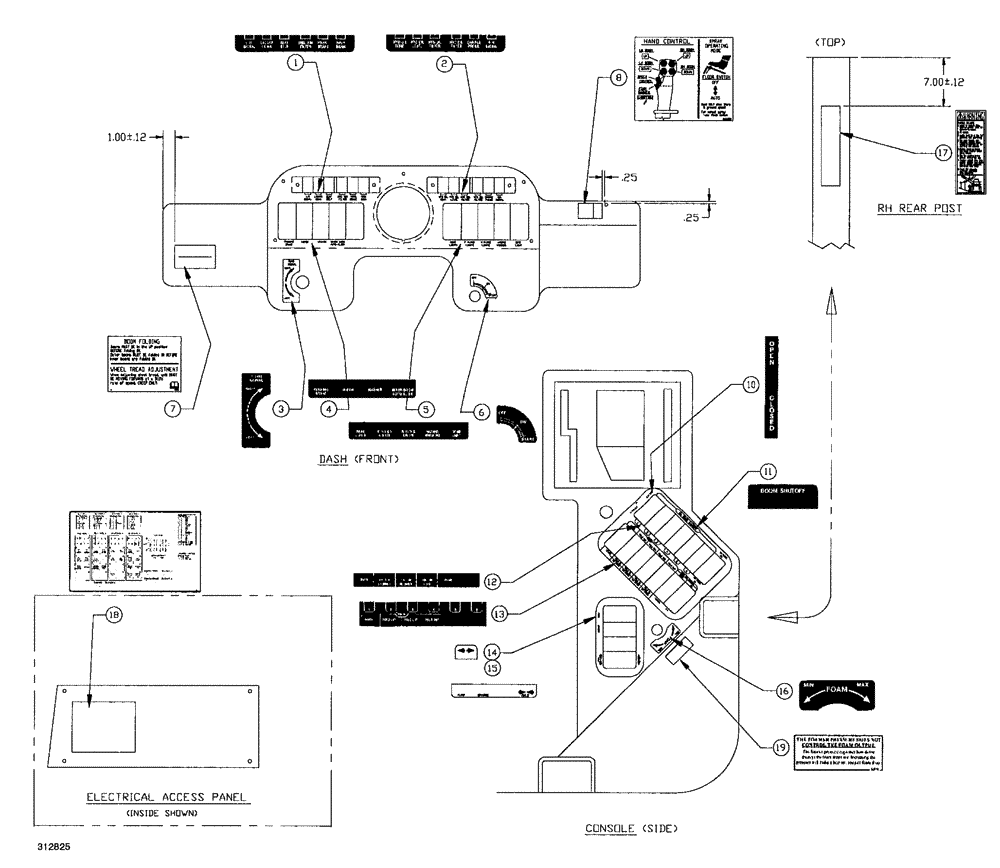

Схема запчастей Case IH SPX4260 - (266) - INTERIOR DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
14
12
1
11
16
5
8
4
18
15
10
13
2
3
6
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN69138

DECAL

LH lite bar-dash

1шт.

2

BN69137

DECAL

RH lite bar-dash

1шт.

3

BN69142

DECAL

Turn Signal - Dash

1шт.

4

BN311761

DECAL

LH function switch

1шт.

5

BN69139

DECAL

RH Lite Switch Dash

1шт.

6

BN69141

DECAL

Ignition Dash

1шт.

7

333096A1

DECAL

boom/wheel tread

1шт.

8

BN312055

DECAL

hand control

1шт.

10

BN69146

DECAL

Boom (Open-Close) Dash

1шт.

11

BN310442

DECAL

boom shutoff

1шт.

12

BN310440

DECAL

boom function, upper

1шт.

13

BN310441

DECAL

boom function, lower

1шт.

14

BN69149

DECAL

axle out, dash

1шт.

15

BN315660

DECAL

Pump, Spring, P2, Axle

1шт.

16

BN69148

DECAL

Foam Marker (MIN-MAX) Dash

1шт.

17

87535740

DECAL

electrical shock

1шт.

18

BN310889

DECAL

fuse/relay panel

1шт.

19

BN63916

DECAL

Foam Marker

1шт.

ns

BN313612

DECAL

power, aux. 1, battery

1шт.
