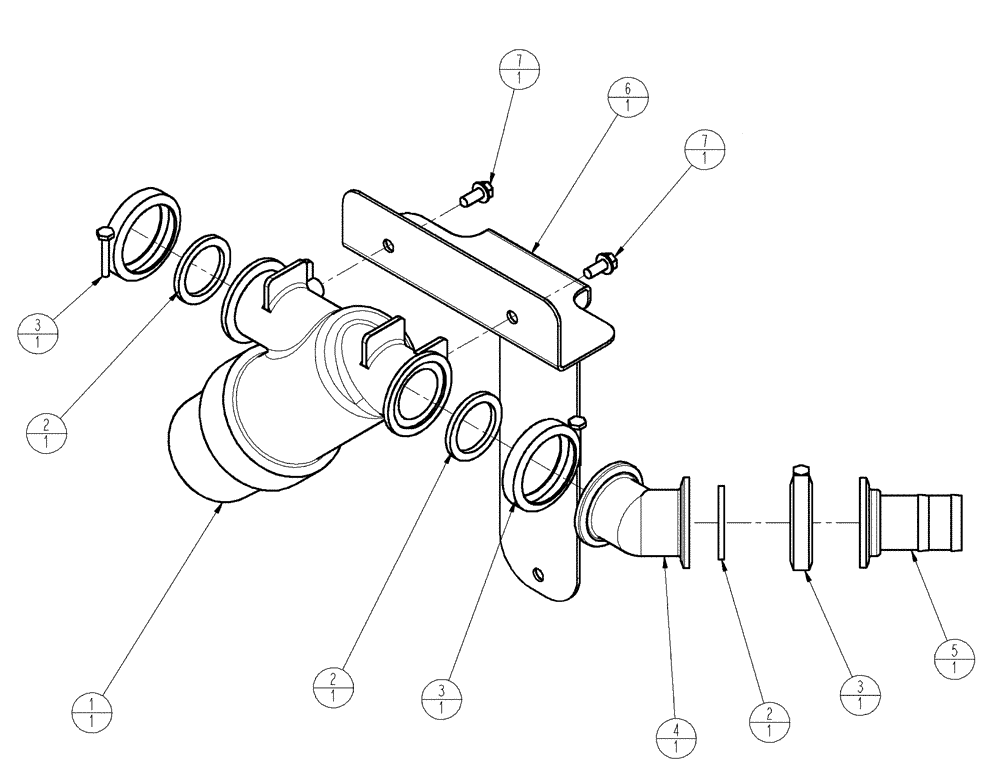

Запчасти Case IH SPX4410 (09-008[01]) - STRAINER PLUMBING GROUP Liquid Plumbing

1

87706933

FILTER STRAINER,2" Full Port Manifold Y Strainer w/10 Mesh Screen

"Y" Style, 2" Full Port Flange, 10 Mesh Screen, Poly

1шт.

See Fig. 09-008(02)

1шт.

2

BN313772

GASKET,2" Full Port, EPDM

3шт.

3

BN313773

CLAMP,2" Full Port

3шт.

4

87267540

ELBOW,45 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

1шт.

5

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

1шт.

6

87267537

PLATE

Strainer Mount

1шт.

7

87303739

SELF-TAP SCREW,Hex Washer, 3/8" - 12 x 1"

2шт.
