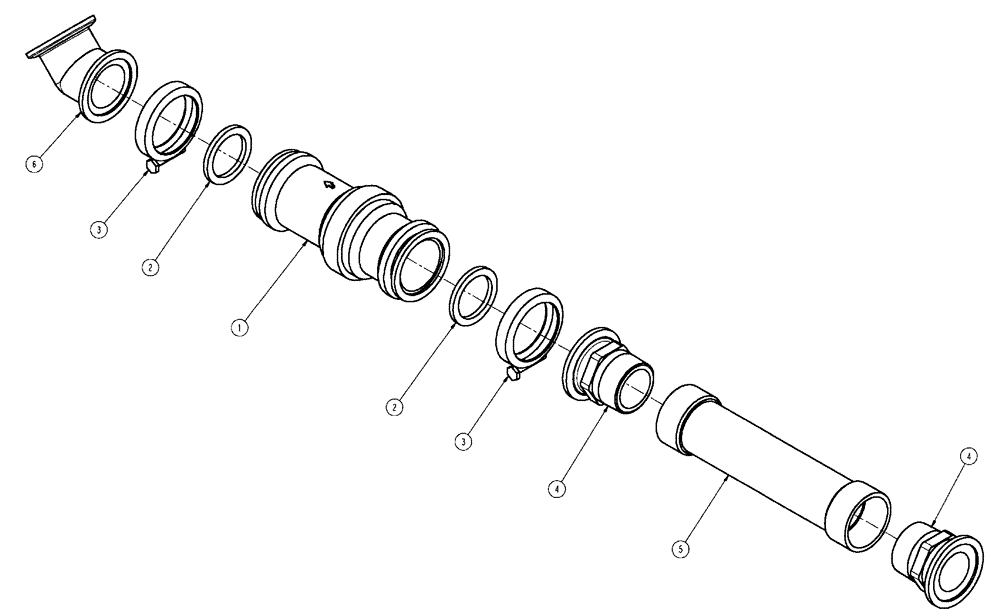

Запчасти Case IH SPX4410 (09-018) - FLOWMETER, STANDARD PLUMBING Liquid Plumbing

1

87265851

METER

Flow, RFM-100, H/P, Start Serial: 20001

1шт.

See Fig. 09-019

1шт.

1

BN321304

METER

Flowmeter, RFM-100, 2 X Pulse, Serial Range: -20000

1шт.

2

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

3

BN313773

CLAMP,2" Full Port

2" Flange

2шт.

4

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

2шт.

5

87268152

PIPE

Standard

1шт.

6

87267540

ELBOW,45 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

Manifold 2" x 45º FP

1шт.
