(09-029) - NOZZLE SPACING GROUP, 5 SECTION 90, 20/30" ON CENTER PLBG

Запчасти Case IH SPX4410 (09-029) - NOZZLE SPACING GROUP, 5 SECTION 90, 20/30" ON CENTER PLBG Liquid Plumbing

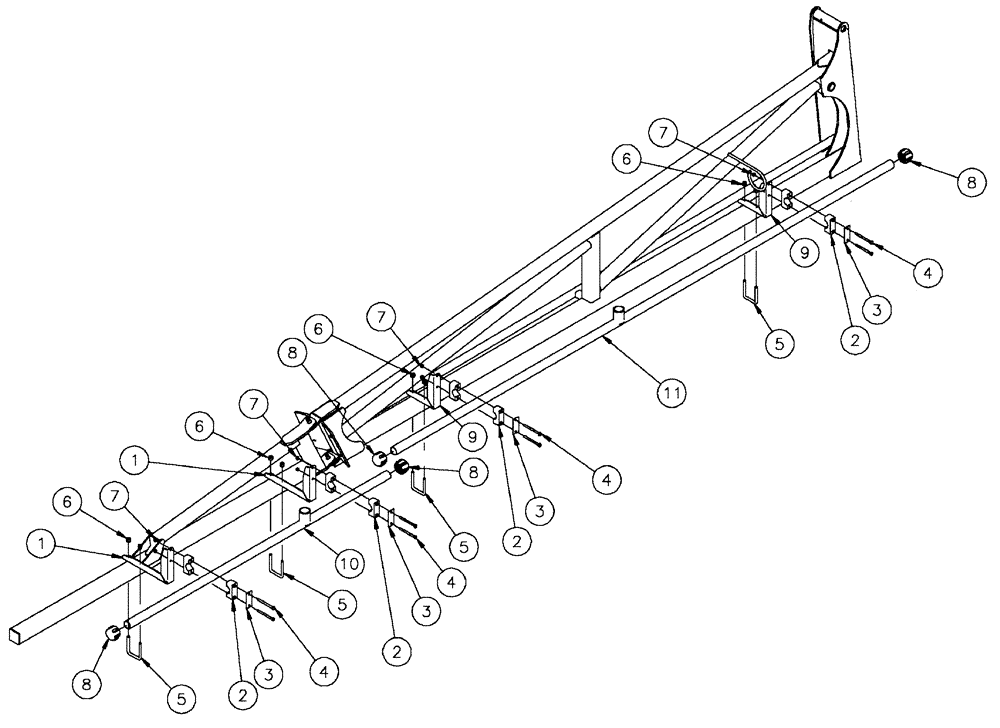

Схема запчастей Case IH SPX4410 - (09-029) - NOZZLE SPACING GROUP, 5 SECTION 90, 20/30" ON CENTER PLBG Liquid Plumbing
2
3
2
3
9
8
6
2
8
4
7
3
6
5
11
7
10
7
1
5
6
6
4
9
8
1
4
3
4
5
2
5
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.

2

BN67054

CLAMP

1.315" OD

4шт.

3

BN309483

PLATE

Top Single, Size 5

4шт.

4

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

8шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

BN73606

CAP

1" NPT, Poly Pipe

4шт.

9

BN323957

BRACKET

Mount Weldment, Spray Bar

2шт.

10

86986640

SPRAYBAR,55" Long, 4 Holes, 20/30" Nozzle Spacing, SST

Spraybar, 4 Nozzles, 20/30" Nozzle Spacing, Stainless Steel, 55" Long

1шт.

11

86986642

TUBE,105" Long, 7 Holes, 20/30" Nozzle Spacing, SST

Spraybar, 7 Nozzles, 20/30" Nozzle Spacing, Stainless Steel, 105" Long

1шт.
