(09-037) - SPRAYBAR, 100 OUTER, 20 OFF CL

Запчасти Case IH SPX4410 (09-037) - SPRAYBAR, 100 OUTER, 20 OFF CL Liquid Plumbing

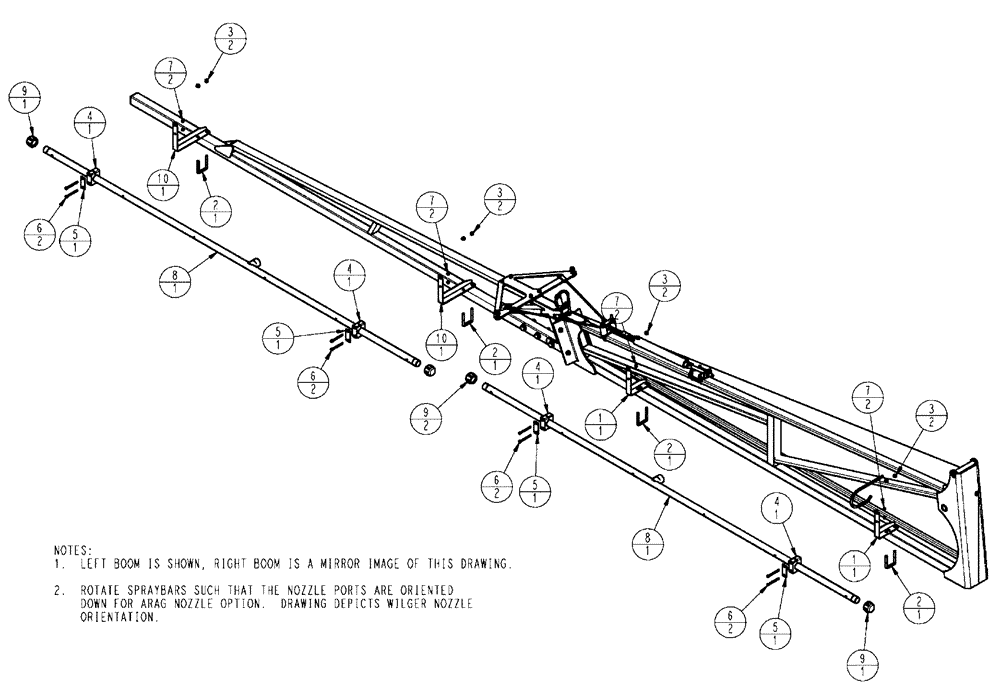

Схема запчастей Case IH SPX4410 - (09-037) - SPRAYBAR, 100 OUTER, 20 OFF CL Liquid Plumbing
4
4
6
6
2
8
5
6
7
9
10
8
3
5
7
5
4
9
2
2
10
1
1
9
7
6
3
4
2
3
7
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.

2

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

4

BN67054

CLAMP

1.315" OD

4шт.

5

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

2шт.

9

BN73606

CAP

1" NPT, Poly Pipe

4шт.

10

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.
