(09-051) - NOZZLE SPACING GROUP, 90’ OUTER, 20” OFF

Запчасти Case IH SPX4410 (09-051) - NOZZLE SPACING GROUP, 90’ OUTER, 20” OFF Liquid Plumbing

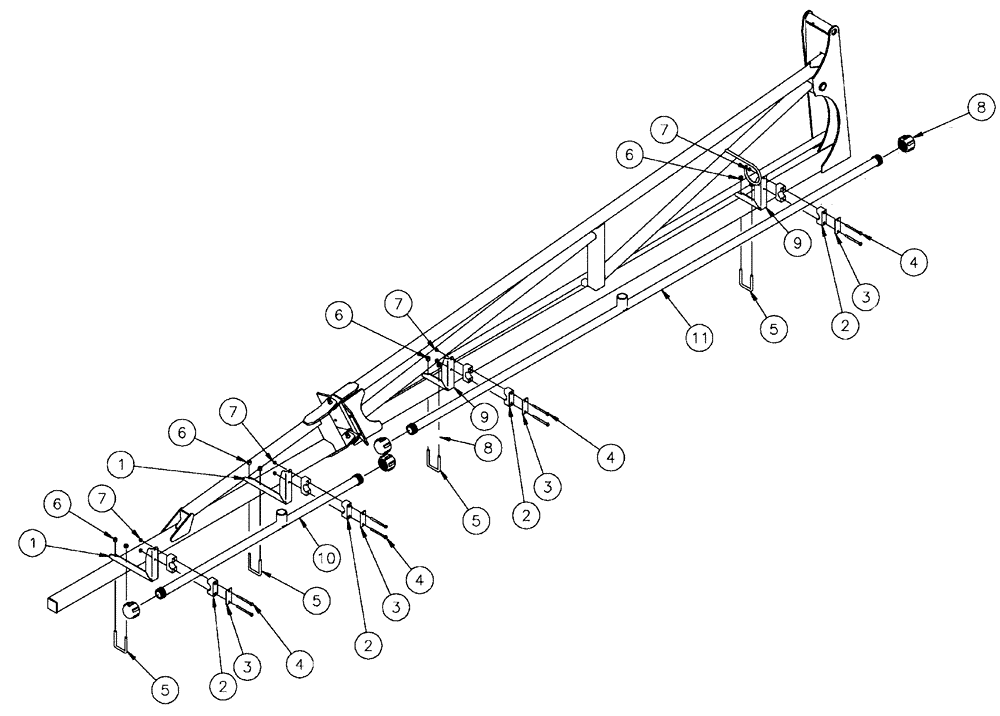

Схема запчастей Case IH SPX4410 - (09-051) - NOZZLE SPACING GROUP, 90’ OUTER, 20” OFF Liquid Plumbing
8
6
4
5
2
6
3
3
2
9
3
7
8
7
4
1
11
2
6
2
7
5
7
5
5
3
4
10
1
6
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87562807

BRACKET, SUPPORTING

Mount, Spraybar

2шт.

2

BN67054

CLAMP

1.315" OD

4шт.

3

BN309483

PLATE

Single, Size 5

4шт.

4

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

8шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

BN21618

CAP

1.25"

4шт.

9

BN323957

BRACKET

Weldment, Spray Bar

2шт.

10

BN320273

TUBE

Weldment, 20" SPX 3 EA

1шт.

11

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

1шт.
