(L.20.A[30]) - ELECTRICAL - CABLE, POWER ADAPTER FOR SP655 AND 6 SWITCH

Запчасти Case IH SRX100 (L.20.A[30]) - ELECTRICAL - CABLE, POWER ADAPTER FOR SP655 AND 6 SWITCH L - Field Processing

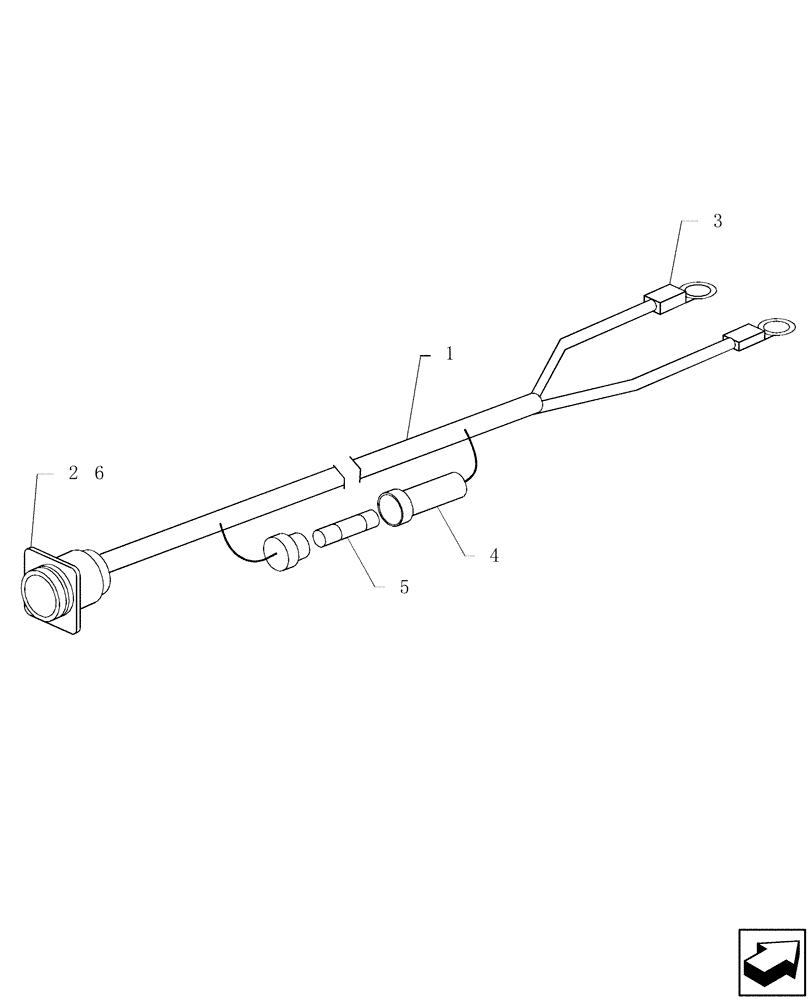

Схема запчастей Case IH SRX100 - (L.20.A[30]) - ELECTRICAL - CABLE, POWER ADAPTER FOR SP655 AND 6 SWITCH L - Field Processing
5
2
6
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

12309

HARNESS

power extension

1шт.

2

225164C1

ELEC CONNECTOR

plastic 3c receptacle

1шт.

3

412732A1

ELEC. TERMINAL PIN,3 - 6 mm2

terminal ring 10-12awg 5/16" yellow

2шт.

4

12310

FUSE HOLDER

inline 3ag 14awg

1шт.

5

11084

FUSE CARTRIDGE

3ag 20 amp 32v medium blow

1шт.

6

223-95

TERMINAL CONNECTOR,Female, 14 - 16

contact pin 8-10awg

2шт.
