(L.20.A[33]) - ACCESSORIES - SPEED SENSOR

Запчасти Case IH SRX160 (L.20.A[33]) - ACCESSORIES - SPEED SENSOR L - Field Processing

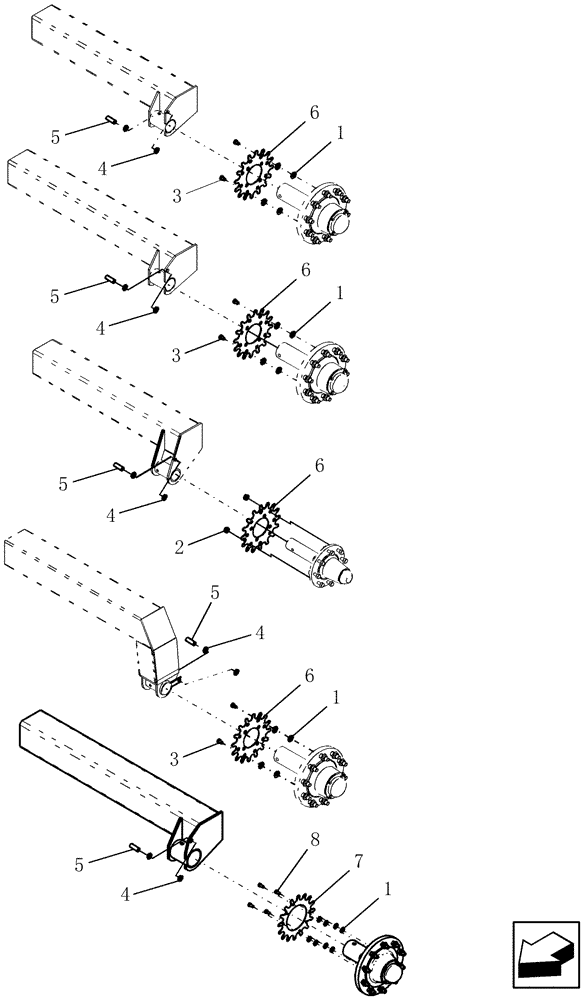

Схема запчастей Case IH SRX160 - (L.20.A[33]) - ACCESSORIES - SPEED SENSOR L - Field Processing
5
1
5
5
1
5
4
4
3
4
6
4
6
8
3
3
2
1
7
6
4
1
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

6шт.

2

425-119

NUT,Hex, 9/16"-18, G5

2шт.

3

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

2шт.

4

425045A1

NUT

7/8"-20 x 1/4" thick

2шт.

5

7936

SENSOR

shaft 12 volt grey, 3 Pin Female WeatherPack, Serial Range: -Y9S005001

1шт.

5

13976

SENSOR

ISO Compatible Speed Sensor, Start Serial: Y9S005002

1шт.

6

87506244

GEAR

speed sensor target 16 tooth

1шт.

7

87623414

GEAR

speed sensor 1021 hub

2шт.

For use with dual wheel assemblies

1шт.

8

87848

BOLT,Hex, 1/2" - 20 x 1", Gr 5

4шт.
