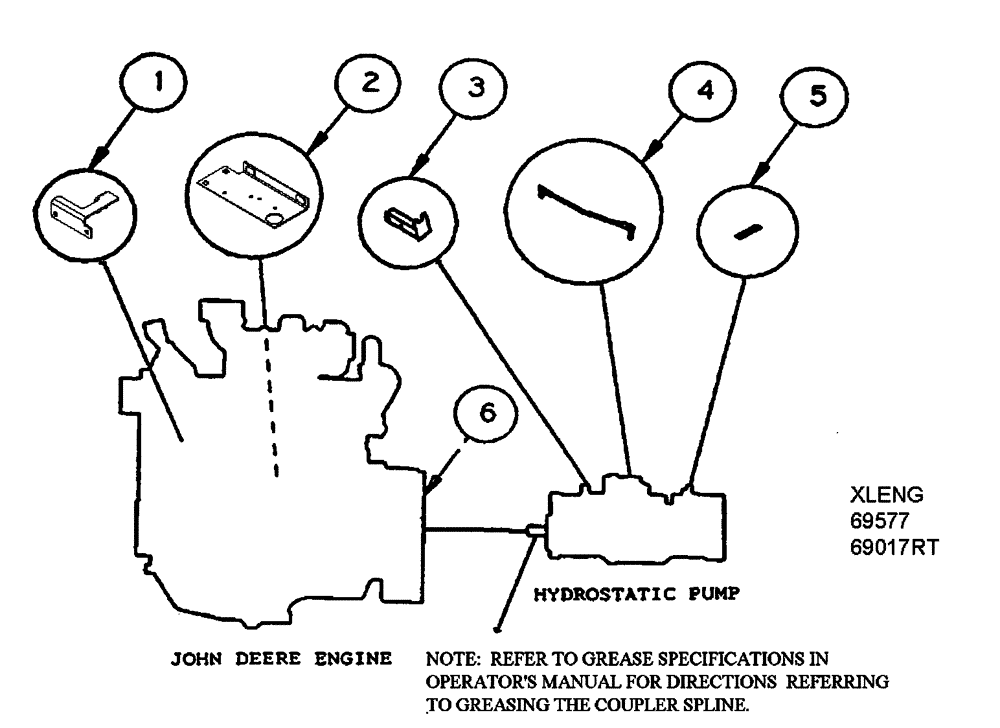

Запчасти Case IH PATRIOT NT (03-002) - ENGINE ASSEMBLY (01) - ENGINE

1

BN69017

Throttle Cable

1шт.

1

BN25722

CABLE

Throttle Control, 202"

1шт.

See Owner’s Manual for WARNING: Information On Control Cables.

1шт.

2

BN69577

Starter Relay

1шт.

3

BN29188

MOUNTING PLATE

Shifter Cable

1шт.

3

BN25721

CABLE

Shift Control, 216"

1шт.

See Owner’s Manual for WARNING: Information On Control Cables.

1шт.

3

BN29258

CLEVIS

Assembly With Pin

1шт.

Associated Part Of Mount-Shifter Cable, P/N BN25721

1шт.

4

BN29950

LINKAGE

Assmbly, Shifter 770

1шт.

4a

BN29949

ROD

3/8"-24 x 10.5"

1шт.

4b

BN40245

BALL JOINT

3/8-24 grommet

2шт.

4c

86509310

NUT,3/8" - 24, Gr 5

2шт.

5

BN29185

MOUNTING PLATE

7 ga 304 3/4" x 3"

1шт.

Associated Part Of Linkage - Front to Rear Pump, P/N BN29950

1шт.

6

BN310027

PLATE

& Coupling Assembly

1шт.

6

BN309994

FLYWHEEL

Coupler Only

1шт.

6

BN98190

PLATE

Mount Only

1шт.

7

BN98538

(Patriot XL-JD4045T)

1шт.

Not Shown

1шт.

8

BN29334

MUFFLER

Exhaust (W/Clamp)

1шт.

Not Shown

1шт.

9

BN29335

PROTECTION CAP

Rain - (Exhaust)

1шт.

Not Shown

1шт.
