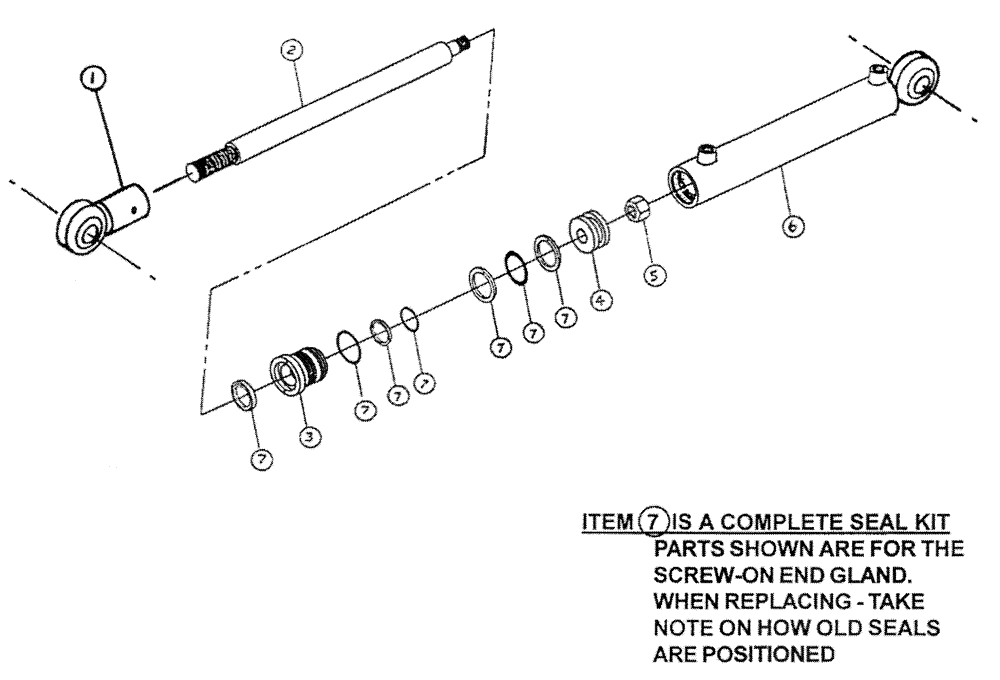

Запчасти Case IH PATRIOT WT (06-003) - HYDRAULIC CYLINDER - BOOM INNER FOLD - (2" X 20") - 1 1/4" DIA ROD Cylinders

0

87271296

CYLINDER

Hydraulic w/Clevis (Complete)

1шт.

87271296R

REMAN-HYD CYLINDER

PATRIOT WT (OLD CAB) (4/96-4/97)

1шт.

87271296C

CORE-HYD CYLINDER

Return Number

1шт.

1

BN98291

ASSEMBLY

1шт.

2

BN98515

SHAFT

1шт.

3

BN98522

GLAND

End, For Cylinder BN52305

1шт.

4

BN98523

PISTON

for cylinder BN52305

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

ASK

Tube

1шт.

7

BN98178

SEAL KIT

1шт.
