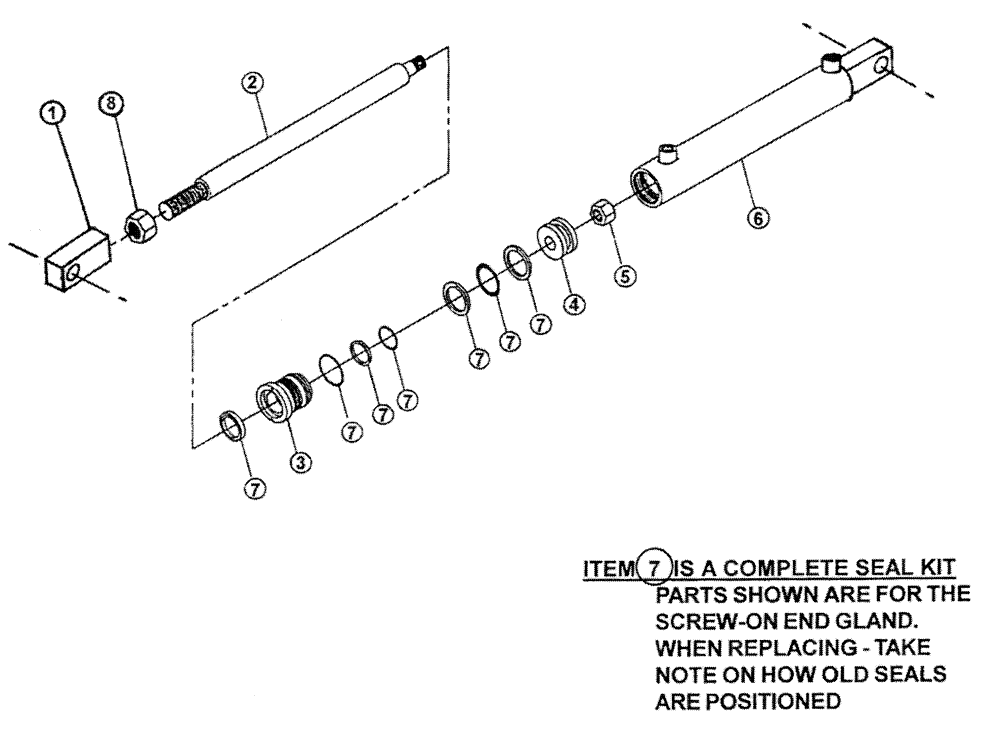

Запчасти Case IH PATRIOT WT (06-007) - HYDRAULIC CYLINDER - BOOM LEVEL (90) - (3 X 18") - 1 1/2" DIA ROD Cylinders

0

BN66172

Hydraulic w/Clevis (Complete)

1шт.

1

BN98519

CLEVIS

for cylinder BN53806

1шт.

2

BN67666

ROD

Cylinder

1шт.

2

BN300160

SHAFT

Cylinder Rod, Use If Clevis End Threads Are 1 1/4"

1шт.

3

BN67667

GLAND

end

1шт.

4

BN67670

PISTON

1шт.

5

BN67671

JAM NUT

Jam

1шт.

6

BN67669

Tube

1шт.

7

BN67668

SEAL ASSY.

kit

1шт.

8

BN98521

Jam

1шт.
