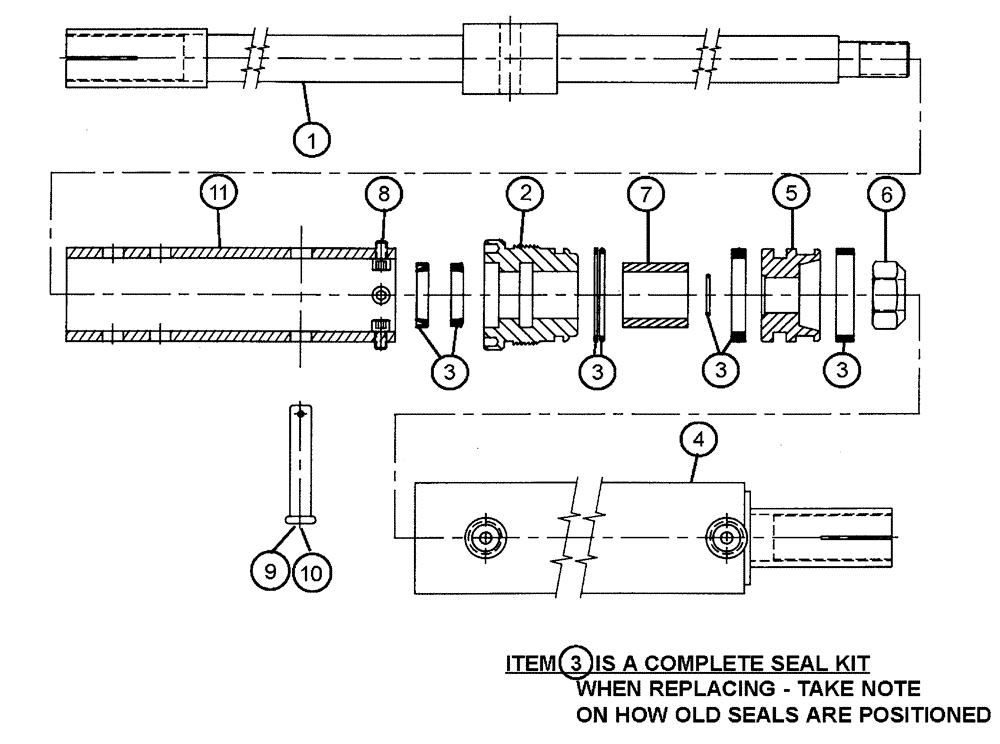

Запчасти Case IH PATRIOT XL (07-011) - HYDRAULIC CYLINDER-TIE ROD (2"X9") 1” DIA. ROD Cylinders

0

BN53928

CYLINDER

Hydraulic (Complete)

1шт.

1

BN98698

SHAFT

1шт.

2

BN98354

Gland

1шт.

3

BN98181

SEAL KIT

Urethane 5000 PS

1шт.

4

BN98699

TUBE

1шт.

5

BN98339

Piston

1шт.

6

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

7

BN98700

BLOCK

Stroke

1шт.

8

BN98703

SCREW,1/4" - 20 x 3/8"

Guide-Nylon

4шт.

9

BN98701

PIN

7/16"

1шт.

10

BN98702

COTTER PIN

Hair

1шт.

11

BN98704

ADJ. Cylinder, Stop

1шт.
