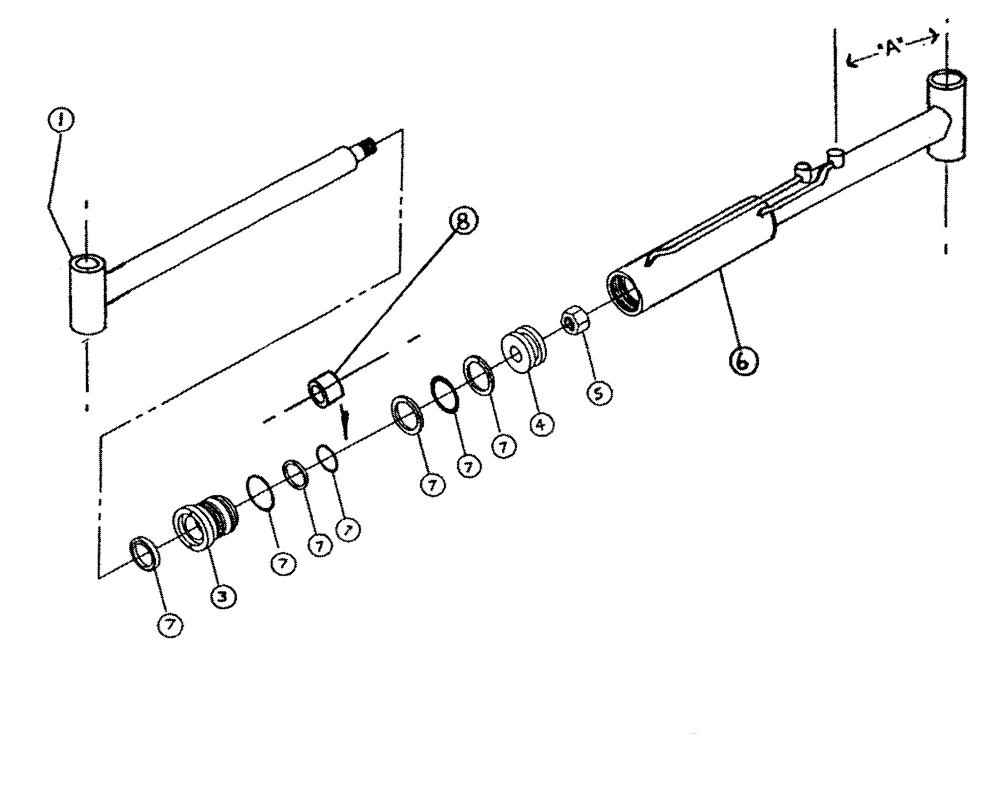

Запчасти Case IH TYLER (06-001) - HYDRAULIC CYLINDER-AXLE ADJ Cylinders

0

BN53875

CYLINDER

with clevis (complete), Start Serial: 380

1шт.

1

BN98550

ROD

1шт.

3

BN92473

GLAND

End

1шт.

4

BN98091

PISTON

hydraulic cylinder

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

BN98179

SEAL KIT

1шт.

For the screw-on end gland - When replacing - take note on how old seals are positioned

1шт.

8

BN98532

Stroke

1шт.
