(06-003) - HYDRAULIC CYLINDER (60 AND 75 BOOM) - BOOM INNER FOLD

Запчасти Case IH TYLER (06-003) - HYDRAULIC CYLINDER (60 AND 75 BOOM) - BOOM INNER FOLD Cylinders

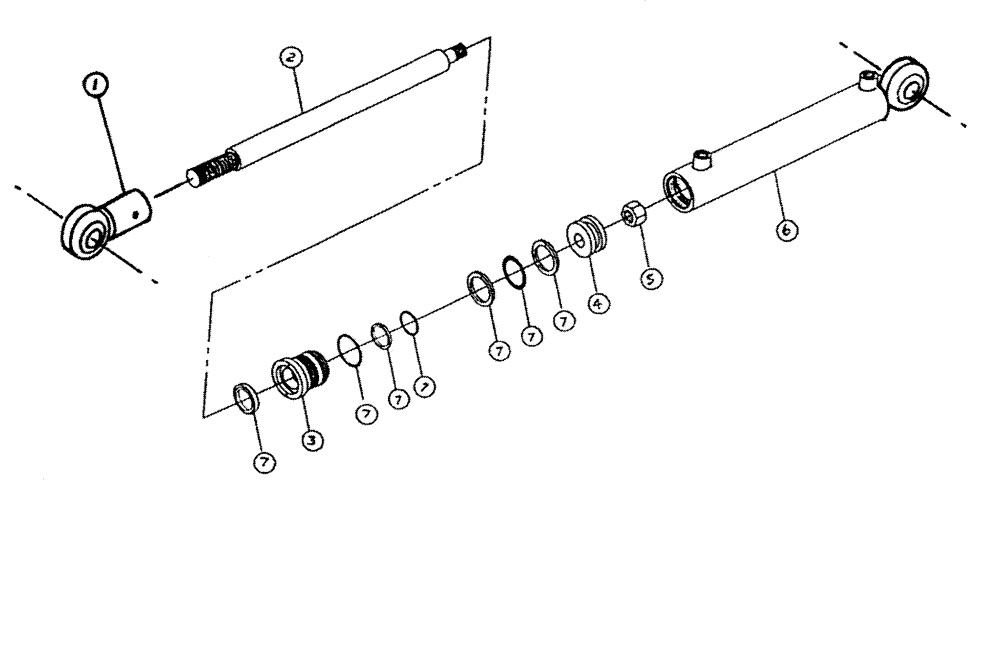

Схема запчастей Case IH TYLER - (06-003) - HYDRAULIC CYLINDER (60 AND 75 BOOM) - BOOM INNER FOLD Cylinders
6
7
5
7
7
2
1
7
4
7
7
7
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87271296

CYLINDER

Hydraulic w/Clevis (Complete)

1шт.

87271296R

REMAN-HYD CYLINDER

TYLER (1991-1992) (1/91-2/92)

1шт.

87271296C

CORE-HYD CYLINDER

Return Number

1шт.

1

BN98291

ASSEMBLY

1шт.

2

BN98515

SHAFT

Cylinder

1шт.

3

BN98522

GLAND

End, For Cylinder BN52305

1шт.

4

BN98523

PISTON

for cylinder BN52305

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

BN98178

SEAL KIT

1шт.

For the screw-on end gland - When replacing - take note on how old seals are positioned

1шт.
