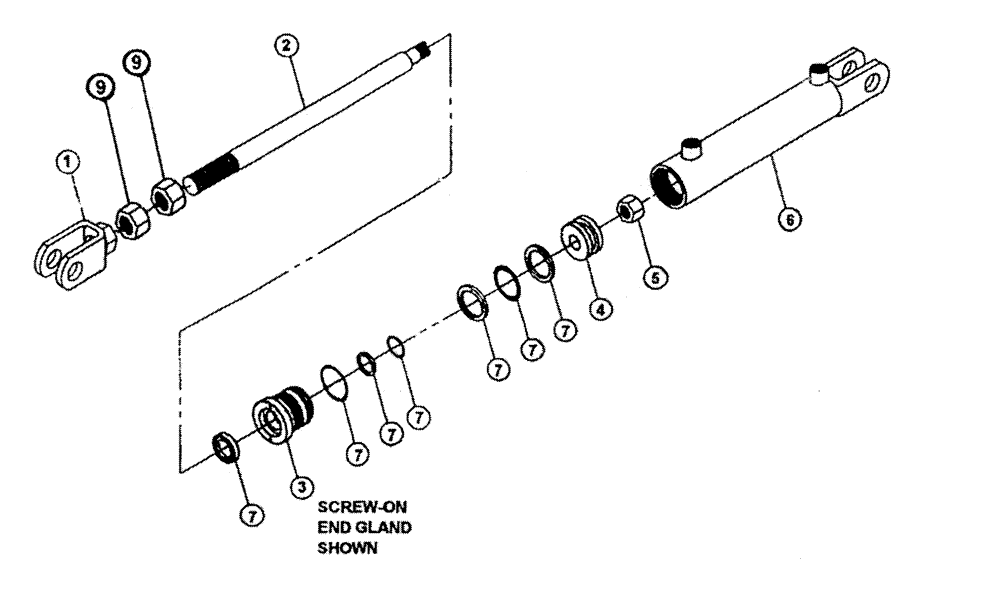

Запчасти Case IH TYLER (06-005[01]) - HYDRAULIC CYLINDER - BOOM OUTER FOLD(90 BOOM), SCREW-ON END GLAND TYPE Cylinders

0

BN51461

CYLINDER

HYD. w/Clevis (Complete)

1шт.

1

BN92395

CLEVIS

1шт.

2

BN95002

SHAFT

Cylinder

1шт.

3

BN92353

GLAND

end

1шт.

4

BN98091

PISTON

hydraulic cylinder

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

BN98180

SEAL KIT

1шт.

For the screw-on end gland - parts may vary on the spiral-wire lock end gland - when replacing - take note on how old seals are positioned

1шт.

9

BN98621

PLUG

Jam

2шт.
