(06-005[02]) - HYDRAULIC CYLINDER - BOOM OUTER FOLD(90 BOOM), SPIRAL-WIRE LOCK END GLAND TYPE

Запчасти Case IH TYLER (06-005[02]) - HYDRAULIC CYLINDER - BOOM OUTER FOLD(90 BOOM), SPIRAL-WIRE LOCK END GLAND TYPE Cylinders

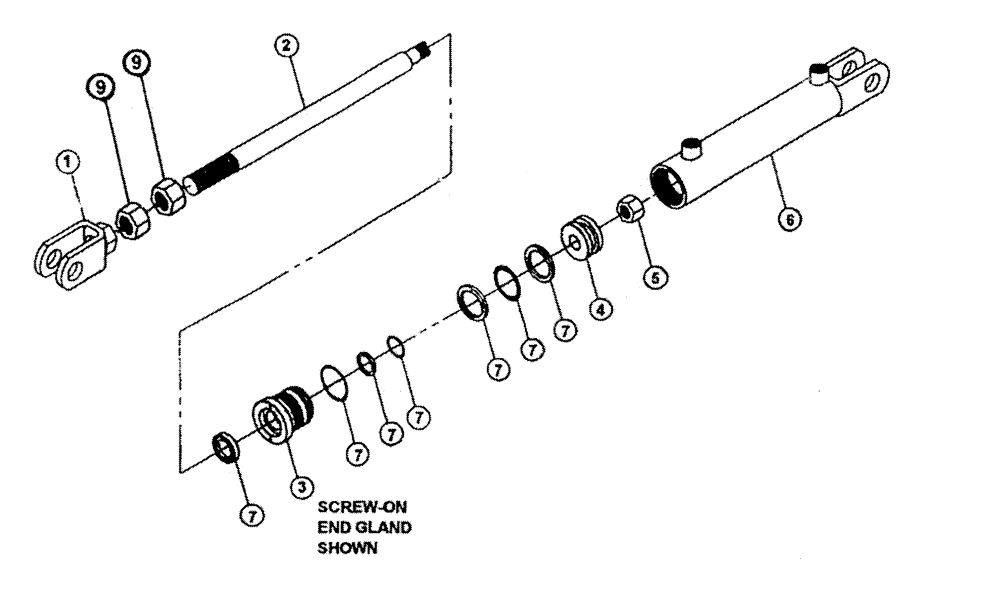

Схема запчастей Case IH TYLER - (06-005[02]) - HYDRAULIC CYLINDER - BOOM OUTER FOLD(90 BOOM), SPIRAL-WIRE LOCK END GLAND TYPE Cylinders
7
7
2
5
4
7
7
7
7
7
9
1
6
3
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

BN22705

CYLINDER

HYD. w/Clevis (Complete)

1шт.

1

BN98031

CLEVIS

1шт.

2

BN98028

Cylinder

1шт.

3

BN98030

GLAND

End

1шт.

4

BN98029

1шт.

5

BN98090

Jam

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

BN95998

SEAL KIT

1шт.

For the screw-on end gland - parts may vary on the spiral-wire lock end gland - when replacing - take note on how old seals are positioned

1шт.

8

BN98096

RETAINING WIRE

End Gland

1шт.

9

BN98521

Jam

2шт.

Выбрано товаров: 11
