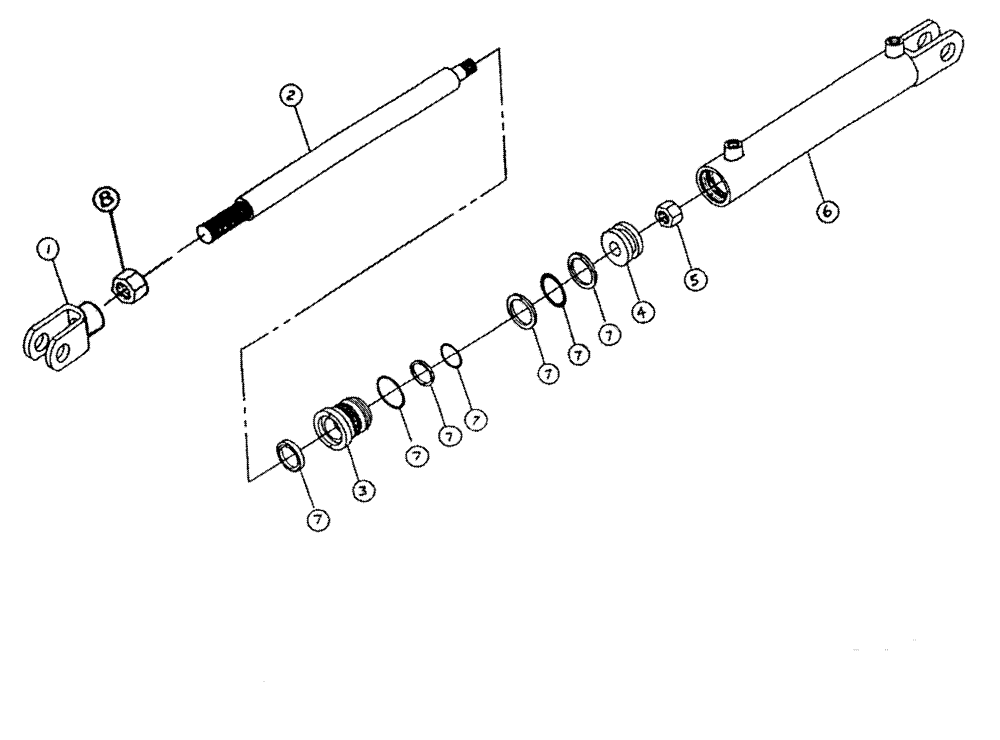

Запчасти Case IH TYLER (06-008) - HYDRAULIC CYLINDER - HITCH Cylinders

0

BN29530

CYLINDER

Hydraulic w/Clevis (Complete)

1шт.

1

BN92395

CLEVIS

1шт.

2

BN98533

Cylinder

1шт.

3

BN98526

End

1шт.

4

BN98523

PISTON

for cylinder BN52305

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

NSS

NOT SOLD SEPARAT

1шт.

7

BN98181

SEAL KIT

Urethane 5000 PS

1шт.

For the screw-on end gland - When replacing - take note on how old seals are positioned

1шт.

8

BN98521

Jam

1шт.
