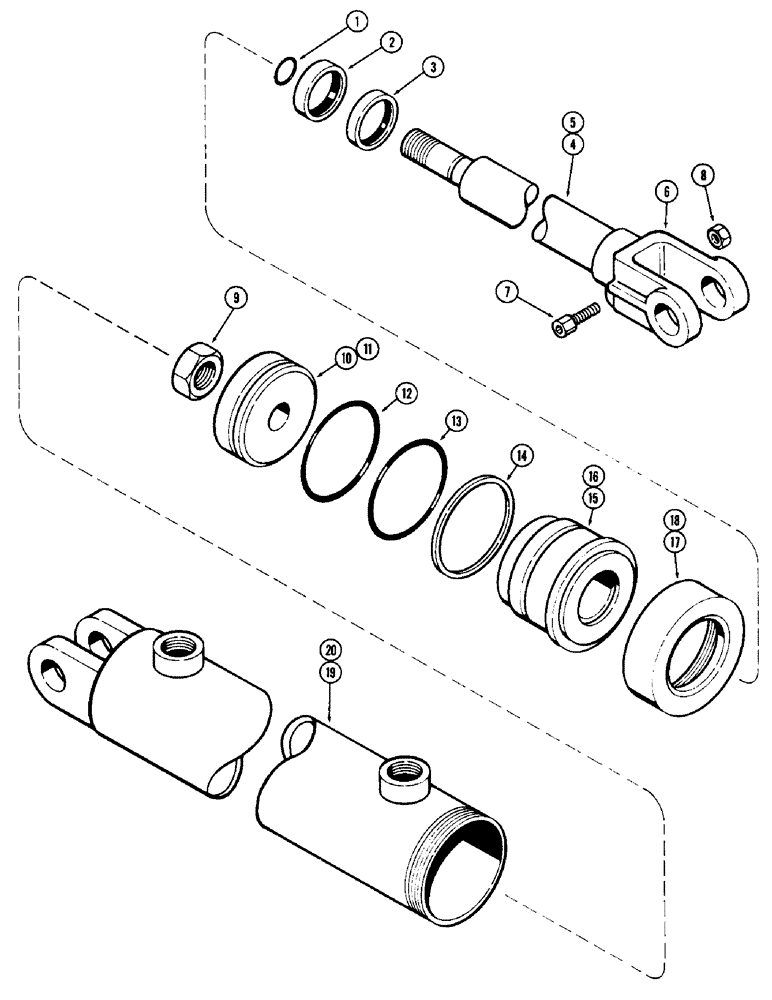

Запчасти Case IH 1900 (20) - T57126 CYLINDER RAM, 3 X 12 INCH (76.2 X 304.8 MM)

T57126

CYLINDER - hydraulic complete

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL - piston 3/4 x 7/8 x 1/16" (19.1 x 22.2 x 1.6 mm)

1шт.

Part of Seal Kit, P/N T63297

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - 1-5/8 x 2 x 5/16" (41.3 x 50.8 x 8.0 mm)

1шт.

Part of Seal Kit, P/N T63297

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER

1шт.

Part of Seal Kit, P/N T63297

1шт.

4

T57143

ROD

1шт.

6

T57142

CLEVIS

1шт.

7

61-528

HEX SOC SCREW,5/16"-18 x 1 3/4"

CAPSCREW - 5/16 x 1-3/4" NC socket head

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

1шт.

9

131-1173

NUT,7/8"-14, GA

- piston rod 7/8" NF

1шт.

10

T57144

PISTON

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 2-5/8 x 3 x 3/16" (66.7 x 76.2 x 4.8 mm)

1шт.

Part of Seal Kit, P/N T63297

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - gland 2-5/8 x 3 x 3/16" (66.7 x 76.2 x 4.8 mm)

1шт.

Part of Seal Kit, P/N T63297

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - backup

1шт.

Part of Seal Kit, P/N T63297

1шт.

15

T57145

HEAD - cylinder

1шт.

17

F57146

END - cylinder

1шт.

19

T57141

TUBE - cylinder

1шт.

T63297

KIT

- seal, Includes: ref. nos. 1, 2, 3, 12, 13, 14

1шт.

T57127

CYLINDER - hydraulic complete, T57127 ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL - piston 3/4 x 7/8 x 1/16" (19.1 x 22.2 x 1.6 mm), T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

Part of Seal Kit, P/N T63298

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - rod, T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

Part of Seal Kit, P/N T63298

1шт.

3

NSS

NOT SOLD SEPARAT

WIPER, T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

Part of Seal Kit, P/N T63298

1шт.

5

T57149

ROD - piston, T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

6

T57142

CLEVIS, T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

7

61-528

HEX SOC SCREW,5/16"-18 x 1 3/4"

CAPSCREW - 5/16 x 1-3/4" NC socket head, T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm) 5/16"-18, G5

1шт.

9

131-1173

NUT,7/8"-14, GA

- piston rod 7/8" NF, T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

11

T57150

PISTON, T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - 3-1/8 x 3-1/2 x 3/16" (79.4 x 88.9 x 4.8 mm), T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

Part of Seal Kit, P/N T63298

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - gland 3-1/8 x 3-1/2 x 3/16" (79.4 x 88.9 x 4.8 mm), T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

Part of Seal Kit, P/N T63298

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - backup, T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

Part of Seal Kit, P/N T63298

1шт.

16

T57151

HEAD - cylinder, T57127 ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

18

T57152

END - cylinder, T57127 ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

20

T57147

TUBE - cylinder, T57127 ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.

T63298

KIT

- seal, Includes: ref. nos. 1, 2, 3, 12, 13, 14, T57127 Cylinder ram 3-1/2 x 12" (88.9 x 304.8 mm)

1шт.
