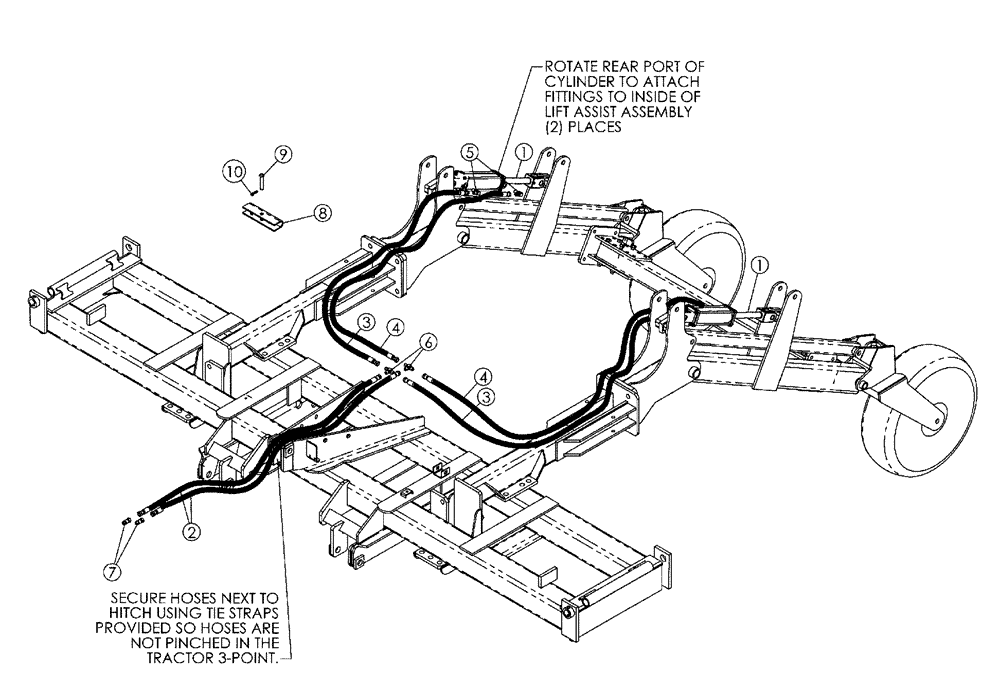

Запчасти Case IH 2500 ECOLO-TIL (35.100.04) - LIFT-ASSIST WHEEL HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25335101

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 254mm Stroke

3-1/2" x 10" Hydraulic, 3000 psi

2шт.

2

25610645

HYDRAULIC HOSE

3/8" x 80", Long

2шт.

3

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

2шт.

4

25600684

HYDRAULIC HOSE,0.38" ID x 132.00", SAE 100R17

2шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

2шт.

6

218-594

TEE,3/4"-16, 37 Degree

2шт.

7

25705041

COUPLING

ISO 3/4" SAEF, Hydraulic

2шт.

8

04632700

STAY

9-3/4", Long Cylinder

2шт.

9

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/4"

2шт.

10

14720411

COTTER PIN

PIN, COTTER 1/8" x 2", Hair

2шт.
