(55.404.01) - WARNING AND TAIL LIGHT KIT

Запчасти Case IH 527 (55.404.01) - WARNING AND TAIL LIGHT KIT (55) - ELECTRICAL SYSTEMS

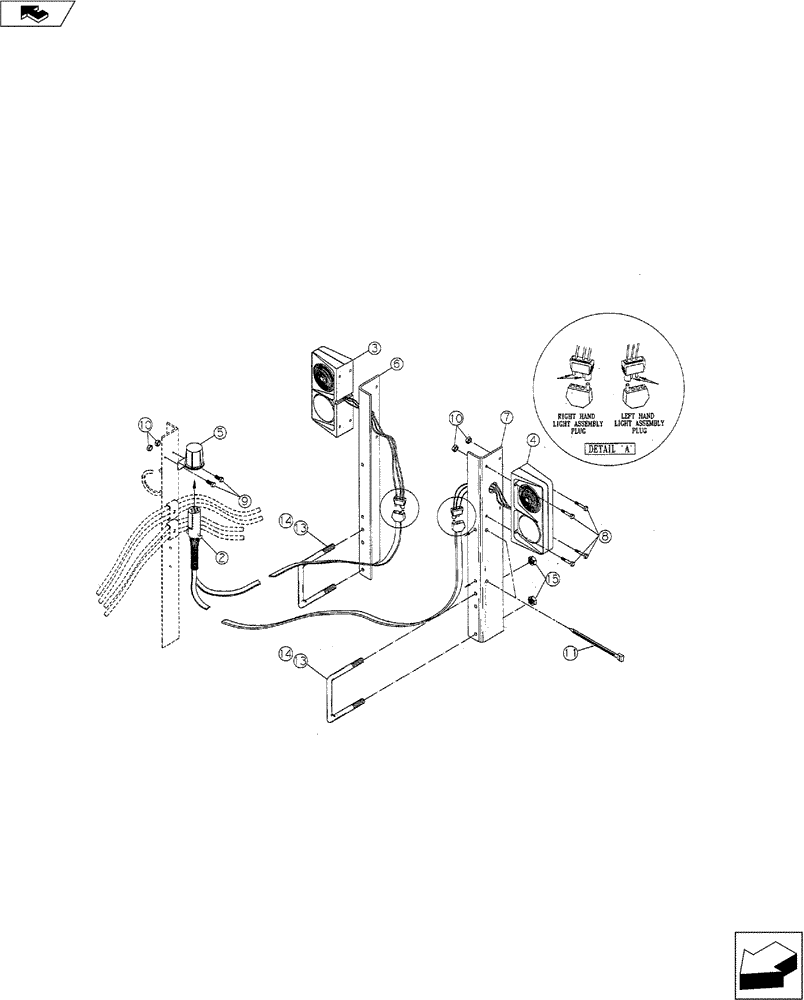

Схема запчастей Case IH 527 - (55.404.01) - WARNING AND TAIL LIGHT KIT (55) - ELECTRICAL SYSTEMS
13
7
6
9
5
13
4
10
8
14
14
10
2
11
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

27601211

HARNESS

Wiring

1шт.

2

27601212

LIGHT ASSY.

Fixture, RH

1шт.

3

27601213

LIGHT ASSY.

Fixture, LH

11шт.

4

27601214

HOLDER

Plug Storage Container

1шт.

5

27601201

SHEET

Light Bracket, RH

1шт.

6

27601202

SHEET

Light Bracket, LH

1шт.

7

16004055

BOLT

1/4" x 1-1/4" NC Hex.,Gd. 5

8шт.

8

NSS

NOT SOLD SEPARAT

1/4" x 3/4" NC Hex. Bolt

2шт.

9

NSS

NOT SOLD SEPARAT

1/4" NC Hex. Lock Nut

10шт.

10

NSS

NOT SOLD SEPARAT

11" Plastic Hose Tie

1шт.

11

NSS

NOT SOLD SEPARAT

AR 28" Plastic Hose Tie

1шт.

12

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 4" x 6"

2шт.

13

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8" x 4" x 4" (Used With Leveler Attachment)

2шт.

14

NSS

NOT SOLD SEPARAT

3/8" NC Hex. Lock Nut

4шт.

15

27601215

LENS

Amber (Not Shown)

1шт.

16

27601216

LENS

Red (Not Shown)

1шт.
